How CTL Lines Are Used

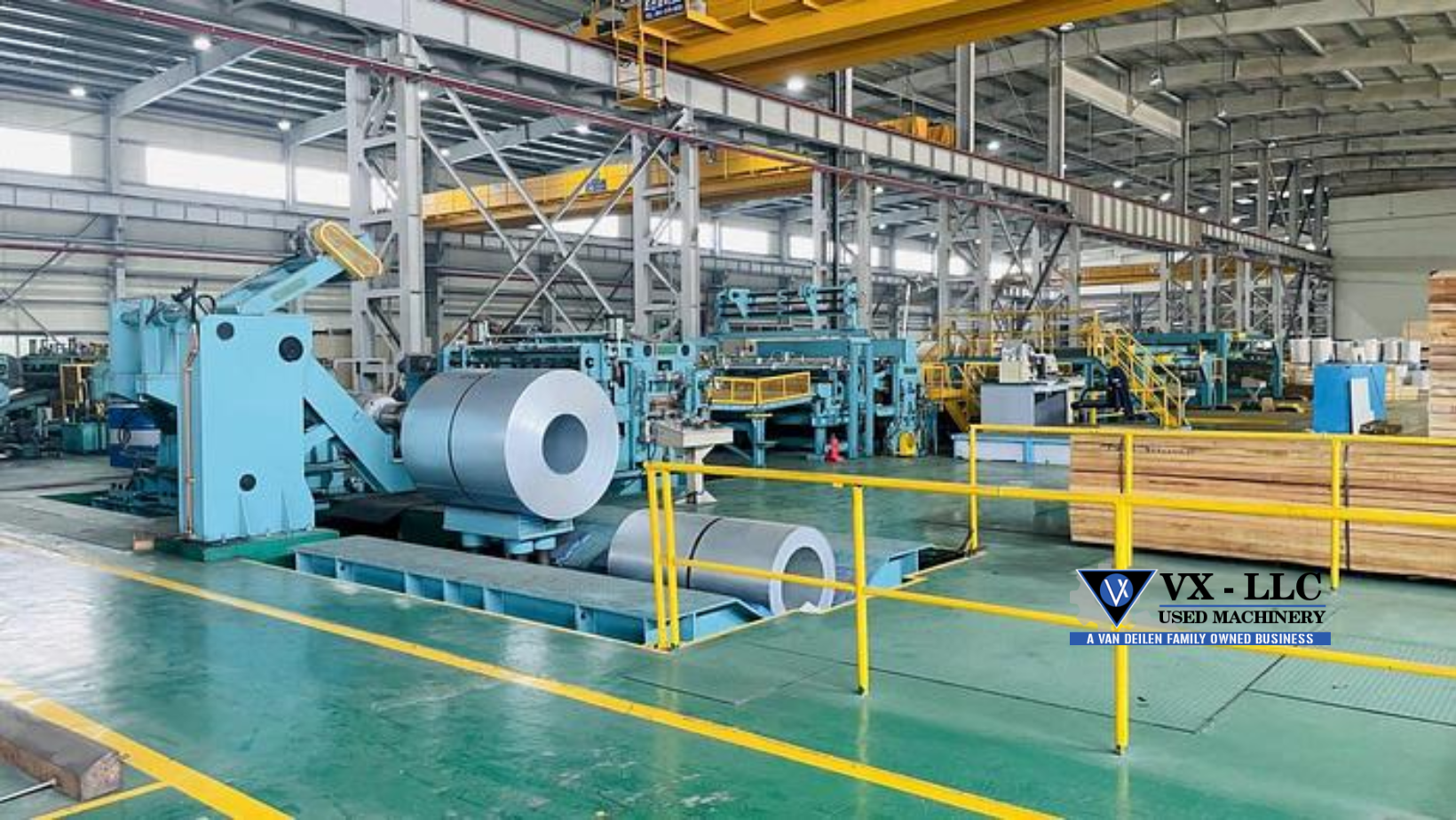

Cut-To-Length (CTL) lines are necessary components in metal manufacturing processes, designed to efficiently transform coils of flat-rolled steel or other metals into precisely cut sheets or blanks. These lines ensure the quality, accuracy, and consistency of metal products used across various industries, including automotive, construction, appliances, and consumer goods.


By automating the uncoiling, leveling, and cutting processes, CTL lines streamline production, reduce material waste, and enhance overall efficiency in metal fabrication operations. Their ability to deliver precise dimensions and high-quality output makes CTL lines indispensable in modern manufacturing environments, where precision and productivity are paramount.


CTL Line Components


Cut-To-Length (CTL) lines comprise several essential components that contribute to their efficient operation. The uncoiling stage involves unwinding flat-rolled steel or metal coils, typically facilitated by specialized uncoilers or coil cars. Leveling systems are integral to CTL lines, employing rollers or other mechanisms to flatten the material and ensure uniformity across the sheet.


Cutting methods in CTL lines vary, with options such as rotary shears, flying shears, or stop/start shears utilized to achieve precise length cuts.

At the end of the line, stacking and packaging processes organize the cut sheets or blanks into bundles for transportation or further processing. These components work in tandem to optimize production efficiency and deliver high-quality output in metal manufacturing operations.


Types of CTL Lines


Cut-to-length (CTL) lines are essential in various industries for processing metal sheets or coils into precise lengths, and they come in different configurations tailored to specific production needs and material specifications. Here are the primary types:

  • Start/Stop Lines: These lines operate intermittently, quickly feeding material through before stopping to make cuts. They are well-suited for heavy-gauge materials up to 1 inch thick, offering shorter cycle times and robust handling capabilities for thicker materials.
  • Continuous Lines: Unlike start/stop lines, continuous lines operate without interruption, allowing the material to move steadily through for cutting. These lines are ideal for lighter gauges, up to 0.06 inches thick, enhancing efficiency and precision during production.
  • Light-Gauge Lines: Optimized for thinner materials (typically 0.020 to 0.060 inches), light-gauge lines are prevalent in sectors like automotive, construction, and appliances. They provide high precision and flexibility, necessary for applications requiring tight tolerances.
  • Heavy-Gauge Lines: These lines are engineered for thicker materials, typically handling up to 1 inch thick or more, and are used in heavy-duty industrial contexts. Heavy-gauge lines are designed to withstand greater forces and stresses and ensure reliable performance and durability.



Key Features and Benefits


One significant advantage of CTL lines is their flexibility, which allows for efficient material handling, customization, and production scheduling. These lines can accommodate different types of materials, including various grades of steel and other metals, and can be customized to meet specific manufacturing requirements.


Additionally, CTL lines offer flexibility in production scheduling, allowing manufacturers to adjust output to meet changing demand and optimize production efficiency.


Precise cutting ensures that finished products meet tight tolerances and quality standards, reducing scrap and rework. Advanced leveling systems in CTL lines ensure that materials are flattened uniformly, minimizing variations in thickness and improving overall product quality.


This precision and accuracy are for industries such as automotive and aerospace, where even minor deviations can impact product performance and safety. By maintaining tight tolerances and high levels of accuracy, CTL lines contribute to producing high-quality, reliable metal products.


Top Applications of CTL Lines


Cut-To-Length (CTL) lines are integral to the automotive industry, where they streamline the production of critical metal components used in vehicles. These components, from body panels to chassis parts, require precise dimensions and consistent quality to ensure vehicle safety and performance. CTL lines meet these demands by processing flat-rolled steel into precise sheets or blanks tailored to automotive specifications. With customizable capabilities to handle different grades of steel and varying thicknesses, CTL lines provide manufacturers with the flexibility needed to produce a wide array of automotive parts. By delivering accurate cutting and leveling, CTL lines uphold the industry's stringent standards, contributing to the production of high-quality, reliable automotive components.


CTL lines manufacture essential building materials such as roofing, siding, and structural components in the construction sector. These materials are the foundation for constructing residential, commercial, and industrial buildings, providing structural stability and weather resistance. CTL lines play a crucial role in this process by converting flat-rolled steel into precise sheets or coils, which are then shaped into finished building products. Whether for roofing and siding applications or structural elements, CTL lines ensure the production of materials with precise dimensions and consistent quality. By harnessing the capabilities of CTL lines, manufacturers in the construction sector can efficiently produce high-quality building materials that meet industry standards and customer expectations, contributing to the construction of durable and aesthetically pleasing structures.



Important Things To Consider


When planning to purchase a Cut-To-Length (CTL) line, it's essential to consider several factors affecting the initial investment and long-term operational success. Here's a helpful guide to help you evaluate these considerations:

  1. Costs: Consider the total costs, including equipment procurement, installation, and ongoing maintenance. The complexity and scale of the CTL line and its specific features and capabilities significantly influence the initial investment. Also, factor in the ongoing costs like repairs, spare parts, and servicing, which contribute to the total cost of ownership.
  2. Return on Investment (ROI): Balance the upfront investment against the anticipated returns. Analyze the potential productivity gains and cost efficiencies the CTL line will bring to your operations to determine its feasibility and expected ROI.
  3. Space Requirements: Assess the space and layout requirements for installing a CTL line within your manufacturing facility. Evaluate the needed physical footprint, ensuring it fits your existing floor space and production workflows.
  4. Dimensions and Layout: Consider the length, width, and height of the CTL line, including necessary clearances for material flow and operator access. This will help optimize space utilization and enhance operational efficiency.
  5. Integration with Production Processes: Address considerations related to material flow, including storage areas for raw materials and finished products. Also, consider the CTL line’s proximity to other production processes to ensure seamless integration and uninterrupted workflow within your facility.


Benefits of Buying Used Machinery


Investing in used machinery, including Cut-To-Length (CTL) lines, offers several notable benefits for manufacturers seeking to optimize their production processes while minimizing costs.


Firstly, purchasing used machinery often presents a more affordable option than buying new equipment, enabling businesses to acquire high-quality machinery at a fraction of the cost. This cost savings can be significant, especially for companies operating with limited budgets or looking to expand their production capabilities without overspending.


Additionally, buying used machinery allows for quicker implementation and deployment, as the equipment is readily available and typically requires less lead time than ordering new machinery.


Moreover, used CTL lines and machinery may offer advanced features and technology, providing manufacturers with access to modern capabilities at a lower price point.



Work With VX LLC


Are you looking to upgrade your manufacturing capabilities with top-quality industrial machinery? Explore VX LLC's collection of used cut-to-length lines. We offer a range of trusted brands, such as PRO-ECO, Herr Voss, and Iowa Precision, at competitive prices.


Whether expanding your production capacity or replacing outdated equipment, browse our inventory to find the perfect solution for your business.


If you want to sell your used CTL line, we also provide hassle-free selling options to help you transition to newer equipment.
