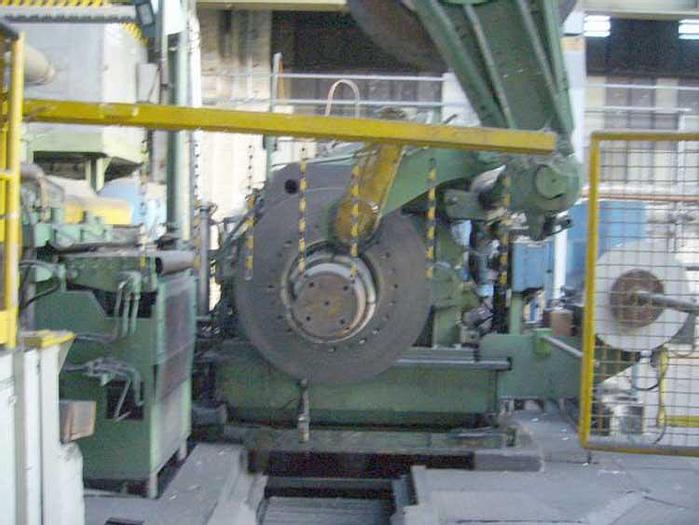

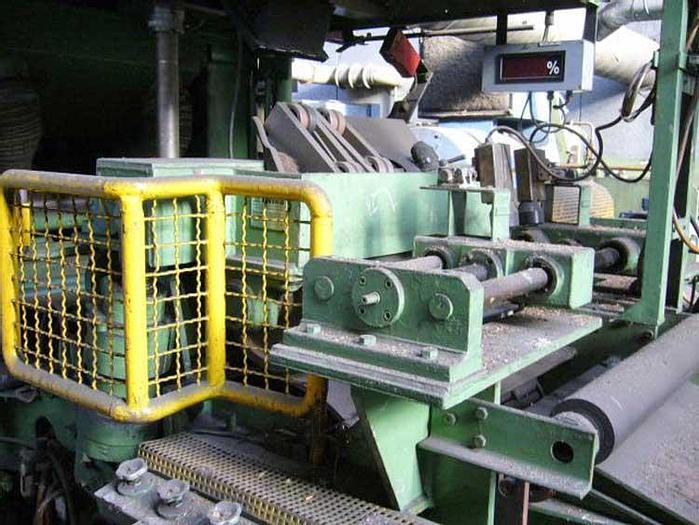

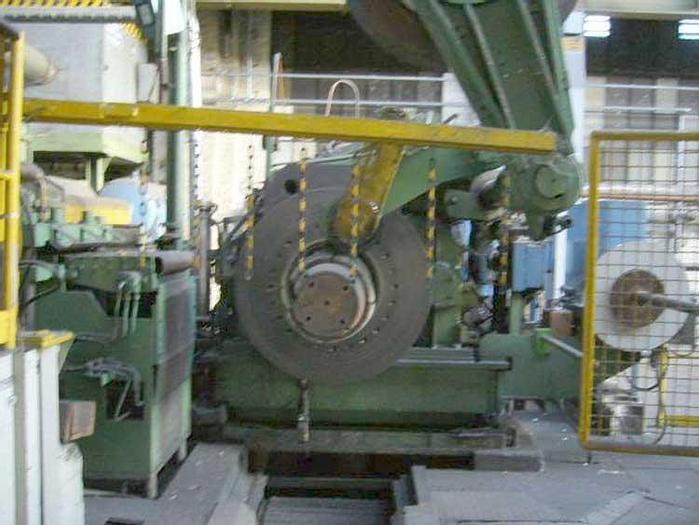

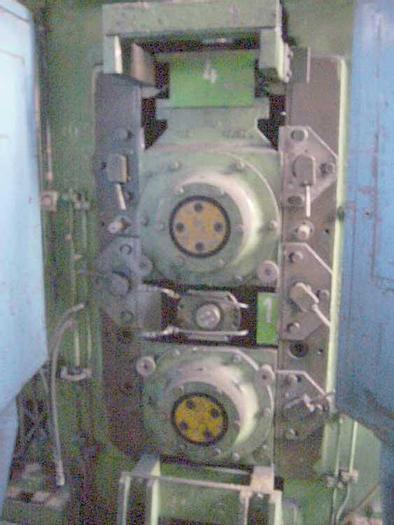

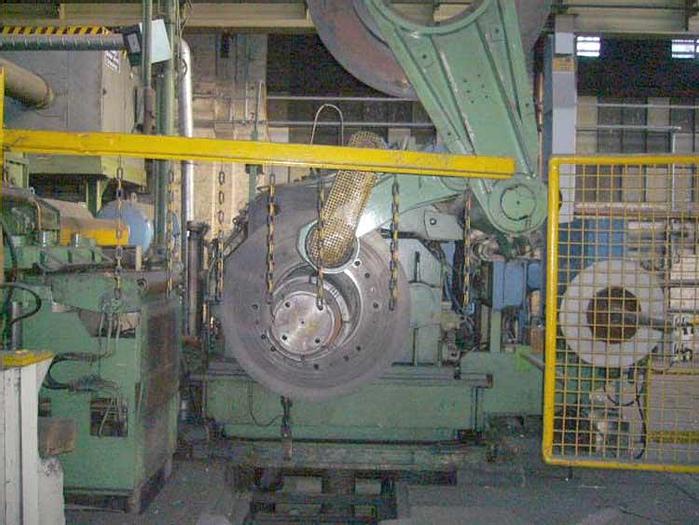

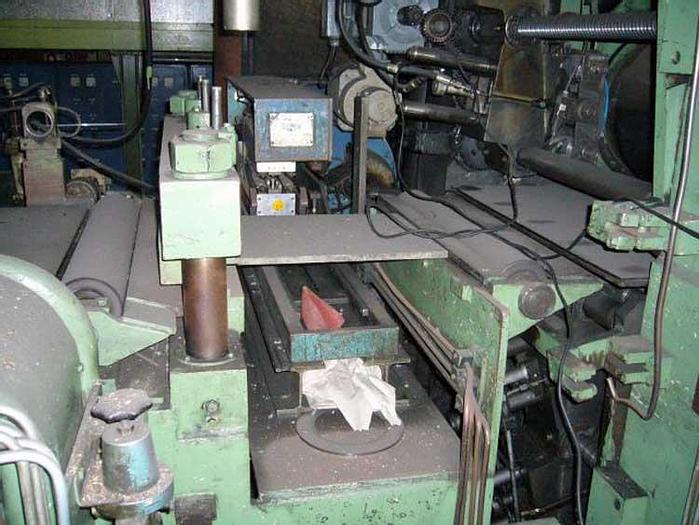

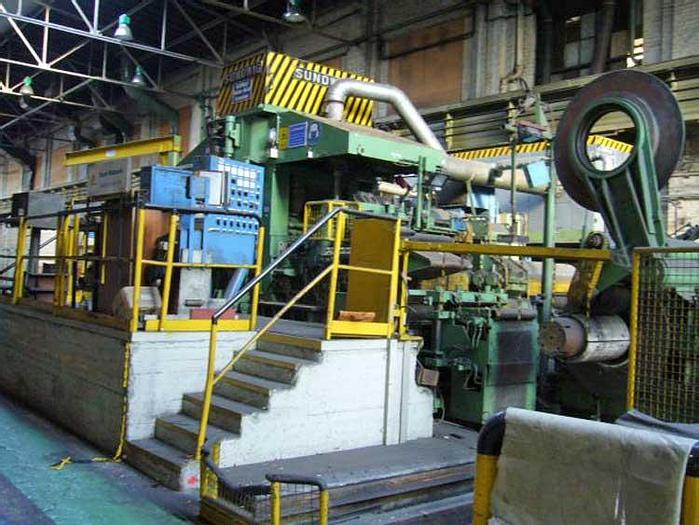

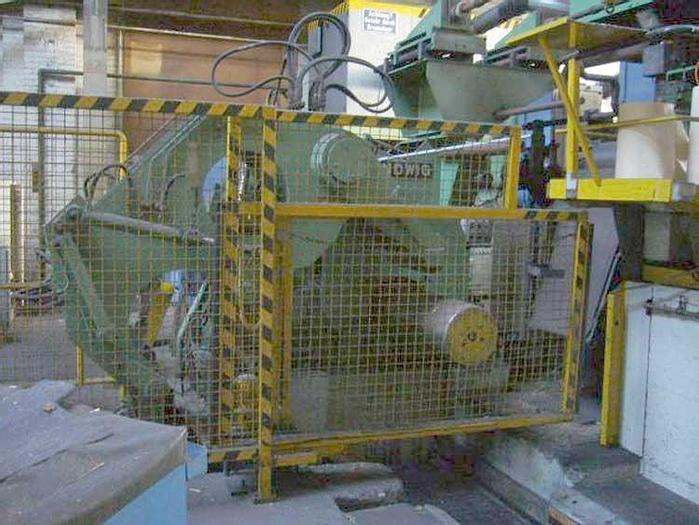

200 MM - 660 MM SEH 4-HI/3-HI/2-HI COLD ROLLING MILL (USED)
Sold
Specifications
| Manufacturer | SEH |
| Year | 1974 |
| Condition | Used |
| Stock Number | VX-17543 |
| Coil-ø maximum | 1.700 mm |
| Coil weight | 10,5 t |
| Speed maximum | 400 m/min. |
| Working direction | Right to Left |
| Coil carriage | Underfloor |
| Mandrel-ø | 406 mm/508 mm |
| Expansion | Hydraulic |
| Main drive | D.C. Motor |
| Driving power | 110 kW |
| Strip tension | Max. 3 t |
| Drive | D.C. Motor |
| Roll bearing | Roller Bearing |
| Barrel length | 720 mm |
| Adjustment | Hydraulic |
| Rolling force | 400 t |
| Thickness gauge | Laser |
| Crop shear | Hydraulic |
| Expansion/clamping | Hydraulic |
Description
Technical Data: Strip Width: 200 mm - 660 mm Strip Thickness: 3,5 - 0,1 mm Strip Elongation Ratio: 0 - 5% Equipment: Decoiler with Shifting Base Plate and Hold-Down Device: Pinch Roll Unit/Brake Roll with Crop Shear: Driving Power: 21 kW Strip Tension: Max. 0,3 t Bridle Roll Housing: Main Drive: D.C. Motor Driving Power: 100 kW Strip Tension: Max. 4 t Mill Stand: Roll-Ø Backup Rolls (2-Hi): 480 mm Roll-Ø Work Rolls (3-Hi/4-Hi): 210 mm Drive: Twin Drive/Backup Rolls Driving Power: (2x115 kW) Strip Elongaion Gauge Recoiler with Hold-Down Device: Mandrel-Ø: 406 mm/508 mm Main Drive: D.C. Motor Driving Power: 125 kW Coil Carriage: Underfloor Strip Tension: Max. 3,5 t
