CLEANING LINE, 65´´ MAXIMUM WIDTH (USED)

Sold

Specifications

ConditionUsed
Stock NumberVX-22618
MaterialsAluminum Sheet products
Gauge range0.007" min. to 0.08" max. Gauge
Sheet width20" min. & 65" max Sheet Width
CleanersAlkaline Solution
Temperature140 Degree F
Cleaning lineWet Section

Description

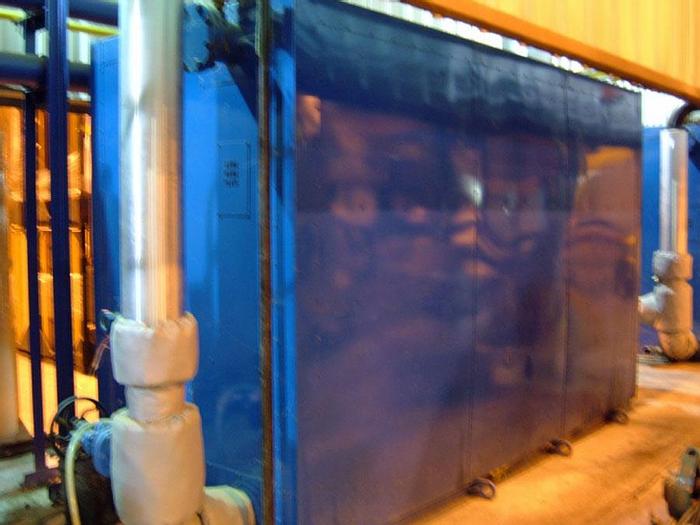

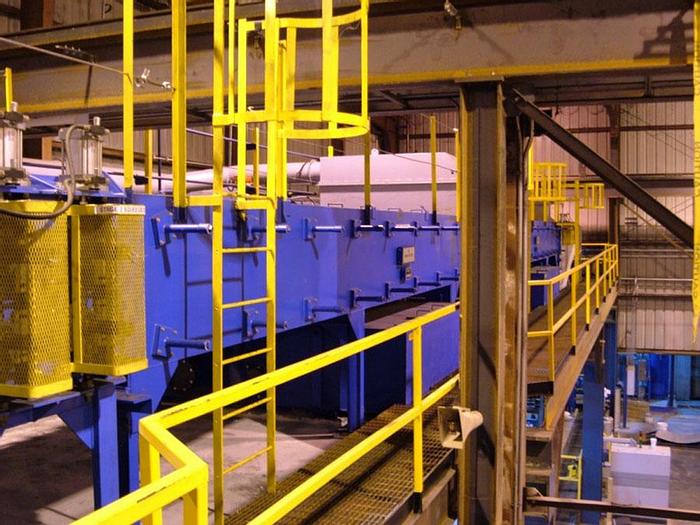

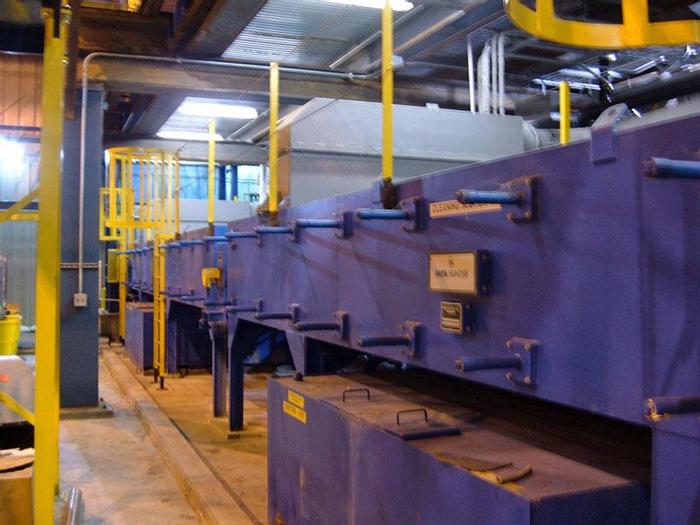

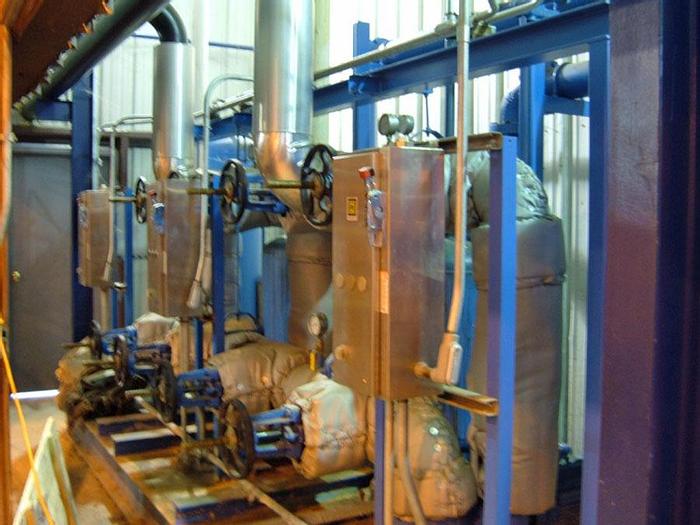

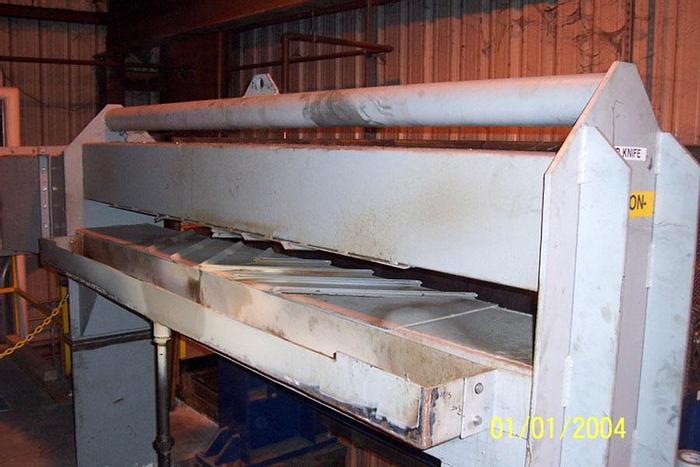

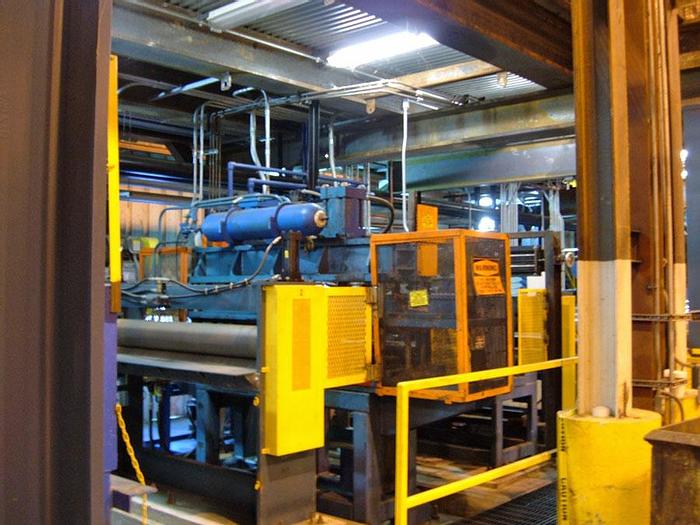

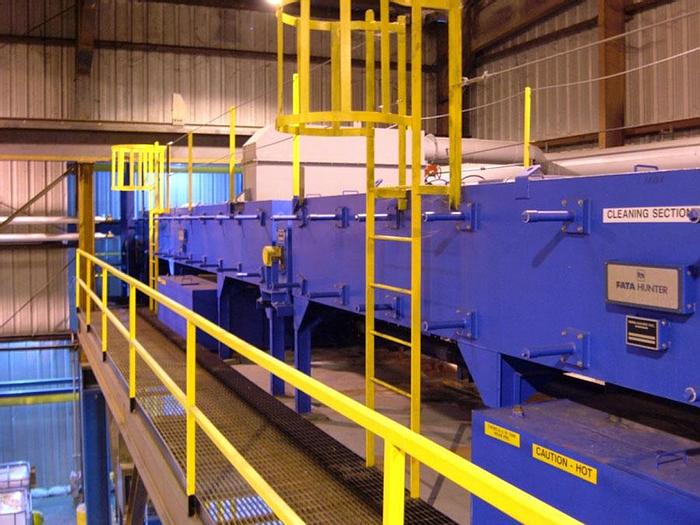

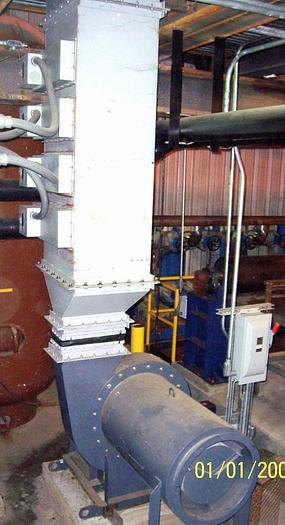

The Cleaning Line was purchased new from Hunter Engineering in 2007. Only 120 coils (1.8MMLbs.) ran on line. Its purpose is remove excess dirt, oils, and debris from the sheet. Line is designed to run 007" up to .080" gauge Aluminum strip with a 65" maximum width. The line speed will have a maximum production speed of 800 FPM. The wet section consists of two stages of cleaning stages, two hot rinse sections, squeegee roll section with a hot air knife and exhaust. The Pay-off and Rewind are mandrel styles able to handle coils up to 72" in diameter. Both mandrels are equipped with outboard bearings and side set capabilities. Coils are loaded and unloaded with coil cars. Other support equipment includes entry table, entry shear, stitcher, and pinch roll stand Cleaning Line Specifications: Sheet Speed: .080" - 400 FPM .060" - 600 FPM .040" - 800 FPM Cleaning Line Entry Section: Pay-off Stand: 72" Coil Size Maximum 20" Mandrel Outboard Bearing Hydraulic Feed Roll +/- 3" Side Set 12:1 Gear Ratio 200 HP AC Motor Pay-off Coil Car: 30,000 Lbs Southworth Self Contained Hydraulic Unit Tilting "V" Table Coil Cradle Pinch Roll Stand #1: 12" Urethane Cover Rolls AC Roll Drive 6" Throat Opening Hydraulic Actuated Feed Table Entry Shear: 65" Width x .080" Maximum Hydraulically Actuated Sheet Stitcher: 72" Hydraulic Actuated Pinch Roll Stand #2: 12" Urethane Cover Rolls AC Roll Drive 6" Throat Opening Hydraulic Actuated First Stage Cleaning (2) 29' Long Sections 20 Spray Bars 150 Nozzles 660 GPM @40 PSI Second Stage Cleaning (2) 29' Long Sections 20 Spray Bars 150 Nozzles 660 GPM @40 PS Hot Water Rinse (2) 29' Long sections 20 Spray Bars Each 150 Nozzles 660 GPM @40 PSI Hot Air Knife Blow-off 300 CFM @9" WC 300 Degree F 50 HP Direct Drive 200 KW In-line Heaters Cleaning Line - Water Heat System Boiler System: (2) Precision Hot Water Boilers Natural Gas Fire 7.3MM BTU/Hr Each (6) Plate & Frame Exchangers Pumping Station (3) Aurora Pumps Triple Duty Balancing Valve Air Expansion Tank Cleaning Line - Exit Section Pinch Roll Stand #3: 12" Urethane Cover Rolls AC Roll Drives 6" Throat Opening Hydraulic Actuated Exit Shear: 65" Width x 0.080" Maximum Sheet Hydraulically Actuated Pinch Roll Stand #4: 12" Urethane Cover Rolls AC Roll Drives 6" Throat Opening Hydraulic Actuated Guide Out Table Cleaning Line - Rewind Rewind Stand: 72" Coil Size Maximum 20" Mandrel Outboard Bearing Hydraulic Feed Roll +/- 3" Side Set 12:1 Gear Ratio 200 HP AC Motor Rewind Coil Car: 30,000 Lbs Southworth Self Contained Hydraulic unit Urethane Covered Rollers
