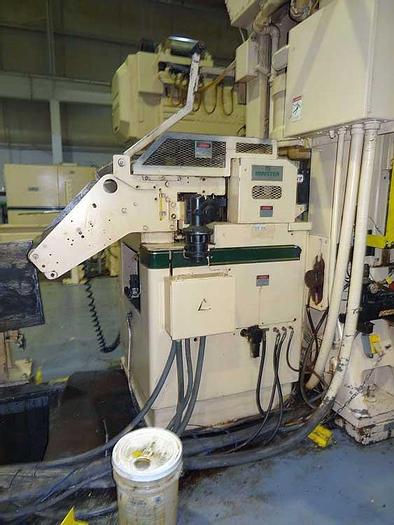

26´´ WIDE MINSTER COMPLETE SERVO FEEDLINE (USED)
Sold
Specifications
| Model | MR20-26D/MS30-26-7/MEF6-26 |
| Condition | Used |
| Stock Number | VX-22829 |
| Coil weight capacity | 20,000 Lbs. |
| Coil width capacity | 26" |
| Minimum thickness capacity | .020" |
| Power supply | 460/3/60 |
| Line speed | 120-1200 IPM |
| D. | 72" |
| Overall line length | 38' |
| Passline height | 59" (+/- 6") |
| Weight capacity | 20,000 Lbs. |
| Capacity | .187" @ full width |
Description
Stock Thickness Capacity: 26" wide x .140" thick material 4" wide x .350" thick material D.: 20-24" Equipped With: Minster Double End Coil Reel: Model Number: MR20-26D (2) Hold Down Arms (Hydraulically Actuated) (3) Leaf Mandrel w/ Hydraulic Expansion 83" Swing Radius Minster Powered Straightener: Model Number: MS30-26-7 7 Roll Straightener Exit and Entry Pinch Rolls(Hydraulically Actuated) Entry Edge Guides Hydraulically Actuated Hold Down Arm Individually Adjustable Straightening Rolls Peeler Table End Flattener Motors and Controls Minster Cabinet Mounted Servo Feed: Model Number: MEF6-26 6" Diameter Feed Rolls Entry Cascade Rolls Ultrasonic Loop Control Thread Table
