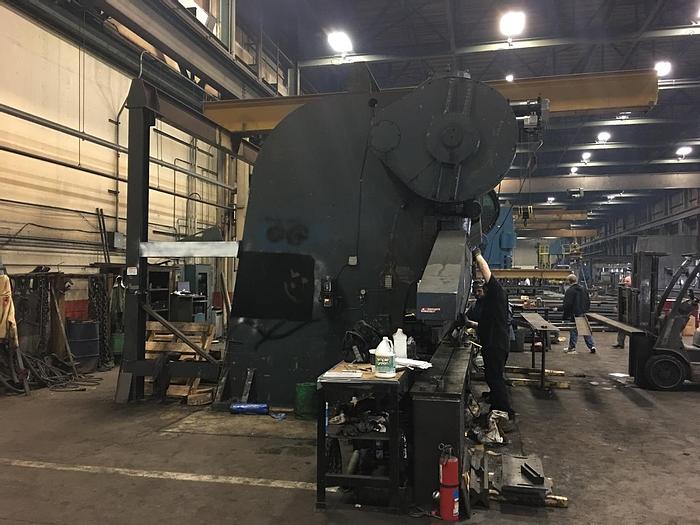

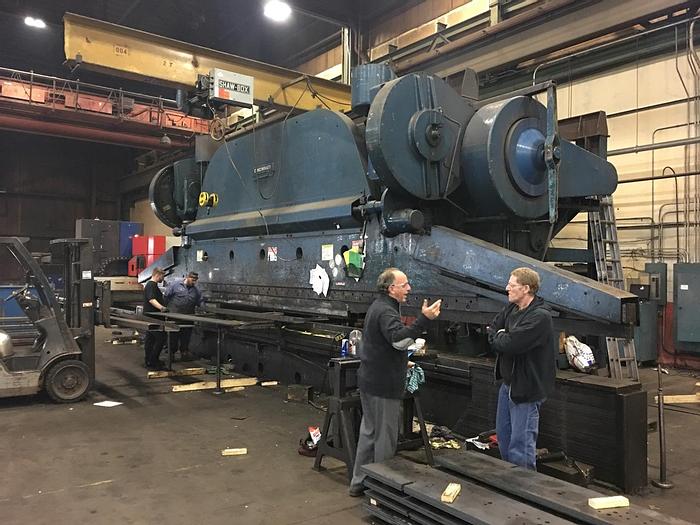

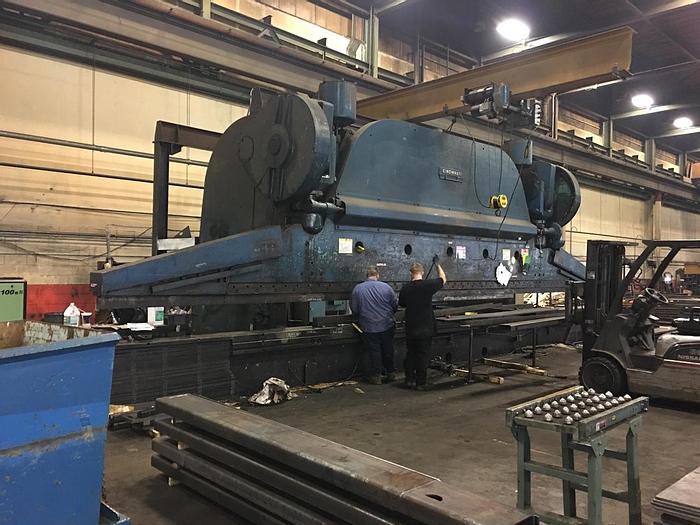

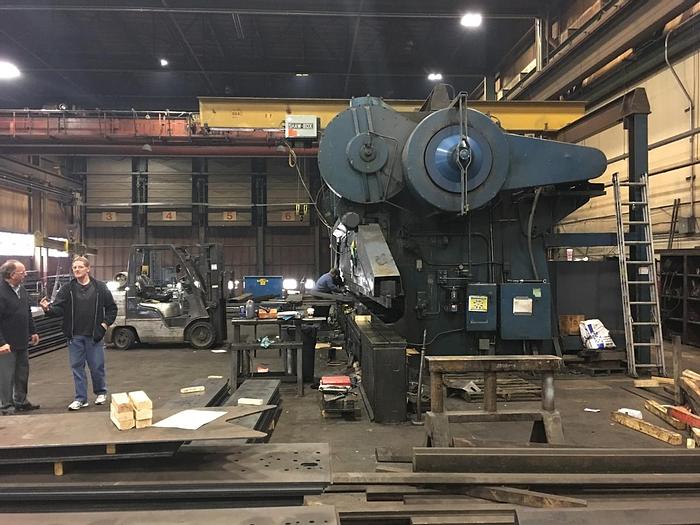

1500 Ton x 30'/40' Cincinnati Mechanical Press Brake Model 50 Series x 20' (Used)
![Used 1500 Ton x 30'/40' Cincinnati Mechanical Press Brake Model 50 Series x 20' (Used)](https://i.machineryhost.com/7304ecfa86d5fdd778a4383d8484198c/large-VX-23100-1.jpg)
Specifications
Condition | Used |
Stock Number | VX-23100 |
Ram & bed machined for angles | Set Of Angles |

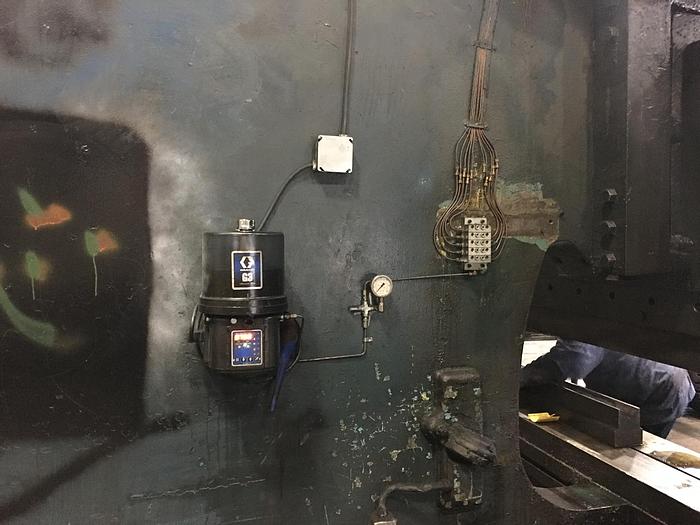

Twin end drive w/gear guards | Automatic Lube System |
Notes | Required Min. 6' Pit For Bed Plate |
Description
1500 Ton x 30'/40' Cincinnati Mechanical Press Brake Model 50 Series x 20' EQUIPPED WITH: 5' Extensions on each End of Bed & Ram (This brings over bed & Ram length to 40') Ram Adjustment Motor Air Assist Friction Clutch w/Remote Foot Pedal Electrical Controls CATALOGUE SPECIFICATIONS: Tonnage Rating @ Bottom Of Stroke 1,500 TONS Tonnage Rating @ Mid Stroke 1,500 TONS Bending Capacity (Max) 12' x 1" Overall Length Of Bed & Ram 40' Distance Between Housings 20.5' Factory Horns are Approx. 5'-6" each Added Rams are Approx 5' each Stroke Of Ram 6" Power Ram Adjustment 6" Strokes Per Minute 5 SPM Throat Depth 16" Die Space (SDAU) 16" Standard Strokes Per Minute 20 & 5 SPM Motor, Horsepower 50 HP Electrics 220/440/3/60 Floor Space Required Approx. 10' x 40' Height Above Floor 12'-9" Weight, Approximately 372,000 LBS (Added Approx. 5000 Lbs. for the additional Horns) Found To Be In Very Good Operating Condition upon my inspection. The company just spent $7000 on upgrade and replacement of the MAIN DRIVE Wheel and shaft.
