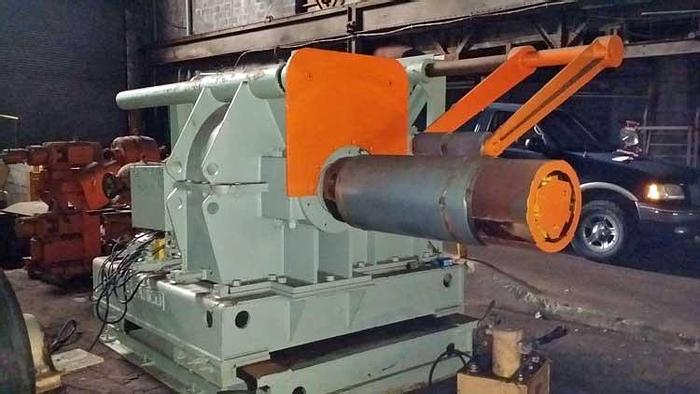

48´´ X 30,000 LB. RECOILER (USED)

orCall (734) 854-8700

Specifications

ManufacturerStamco
ConditionUsed
Stock NumberVX-7132
Gauge range.012" to .050"
Line directionLeft to Right
Overall dimensions20 Ft. Wide x 8 Ft. Front to Back x 5 Ft. Tall
Estimated weight25,000 Lbs.

Description

Capacity: Herr-Voss Rebuilt with a 9" Shaft - Recoiler can hold 30,000 Lbs. Hydraulic Slide Base Attached Hydraulic Holddown Roll 16" to 20" Coil I.D. Hydraulic Expansion (Less Cylinder) 54" Face 49-1/2" Maximum Width 16" Arbor Diameter Drum Installed 20" Arbor Diameter Spare Drum 300 FPM Maximum Speed 40 HP, 650/2300 RPM Reliance DC Motor 5 HP, 1740 RPM, 10 Amp Motor (Runs Hydraulics & Snubber Rolls ) Hydraulic Push Off Recirculating Gearbox Lube Pump
