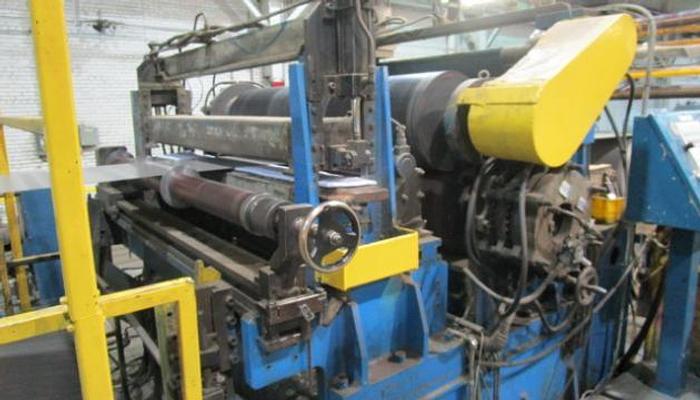

60" x .250" x 60,000 Lbs. Octagon Dual Injector Head Loop Slitting Line (Used)
Specifications
| Manufacturer | Octagon/D&H |
| Condition | Used |
| Stock Number | VX-1709 |
Description
Thickness Range: .015" - .250"
Line Speed: 1000 FPM
Entry Coil ID: 20" - 24"
Exit Coil ID: 20"
Coil OD: 72"
Coil Weight Capacity: 60,000#
Shear Strength: 60,000 PSI
Material: Steel, Aluminum, stainless
Line Direction: Left to Right
Complete Line With:
Enty L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Hydraulic Sliding Base
Water Cooled Brake and Cooler
Feed-Up Drive
Air Clutch
Powered Hold Down Roll
North American Edge Control
Peeler Table
Pinch Rolls
2 Sets of Edge Guides
Crop Shear
2 Injector Style Slitter Heads
8" Diameter Arbors
Sliding Outboard Support
Hydraulic Slitter Head Clamping
Hydraulic Arbor Adjustment
150 HP DC Slitter Drive
Shimless Tooling
2 Scrap Winders
Oscillating Wind
Hydraulic Eject
Looping Pit Cross Over Table
Rotary / Drag Board Tension Stand
Dual Water-Cooled Brakes
Air Bladder Tension Pressure
Hydraulic Open & Close
Spare set of Rolls
Exit Crop Shear
Feed-Up Table
Recoiler
Hydraulic Push-Off
Hydraulic Sliding Base
Hydraulic Drum
2 Speed Gear Box
200 HP DC Drive
Overarm Seperator
Exit L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Coil Holders
SAF Drives
Allen Bradley PLC Control
Allen Bradley Digital Read Outs Panel View 550
Shimless Tooling
