72" x .341" x 50,000 Lbs. Bradbury Cut to Length Line (Used)

General Specifications:

Year of Manufacture: 1996/2010

Materials: HRS, CRS, P/O, Galvanized

Coil Width Range: 12" - 72"

Thickness Range: 0.067" - 0.341" @ 50,000 PSI

Maximum Coil Weight: 50,000 lbs.

Coil I.D.: 20" - 24" & 30"

Maximum Coil O.D.: 84"

Line Direction: Left to Right

Sheet Length: 18" - 20'

Mode of Operation: Start / Stop

Line Speed: 0 - 150 FPM

Maximum Finished Bundle: 20,000 Lbs. @ 20'

Consisting of the following:

-Entry Turnstile:

 Four (4) Arms x 50,000# each arm

 Powered Rotation

 Slots for C-Hooks

-Entry Coil Car:

 Floor Mounted

 Powered Lift and Traverse

 Self Contained Hydraulics

 Pendant Control

-Uncoiler:

 Floor Mounted

 Mandrel Type with Pumpkin Tooth Segments

 Bolt On Risers

 Powered Expansion

 Hydraulic Feedup Motor

 Holddown with Powered Snubber Roll

 Wichita Water Cooled Brake

 Slide Base

 Water Cooler for Brake

-Entry Unit:

 Tail Guard

 Extending Blade Peeler

 Powered Side Guides

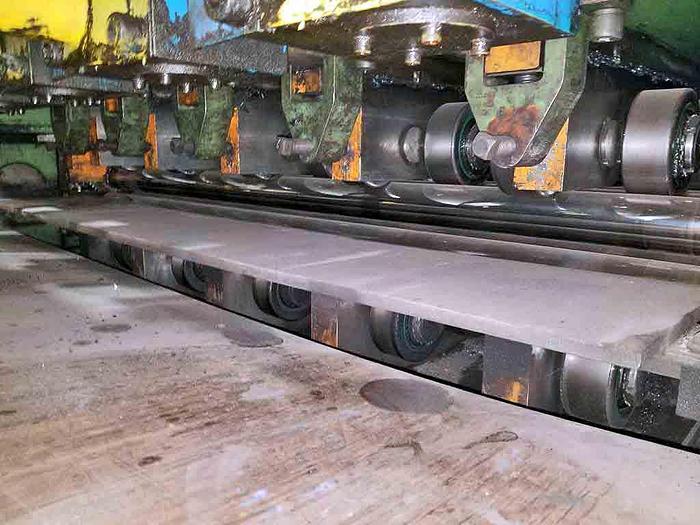

-Leveler: Herr Voss; New 1987

 Model: VKL 84/3.500-13/5 - 4 HI, RH

 Rebuilt: 2007 by Herr-Voss

 Capacity: 72" x 0.067" - 0.341"

       0.341" Thick @ 50,000 psi

       0.222" Thick @ 80,000 psi

 Roll Face: 84"

 Roll Diameter: 3.500"

 Number of Rolls: 13, 6 over 7

 Roll Spacing: 4.25"

 Number of Backups: 5 Flights, Motorized

 Pinion Box Rebuilt 2021

 150 HP Main DC Drive Motor

 Overall Size: Leveler - 150" L x 88" W x 108" High; 35,000 lbs.

        Drive - 81" L x 60" W x 64" High; 16,000 lbs.

 Main Operators Panel

-Carry Over Table to Shear:

 Flat Track Leveling Unit - 2007

-Entry Unit to Shear:

 Powered Side Guides

 Powered Pinch Rolls

-High Speed Shear - Cincinnati:

 Model #2508G

 0.375" Mild Steel Capacity

 Down Cut Mechanical Actuation

 Manual Gap Adjust

 10 HP AC Motor

 Wichita Clutch

-Stacker:

 "Slide-Out" Drop Type

 Powered Side Tampers

 Powered End Stop

 Split Powered Roller Conveyor

 Raise and Lower

-End Discharge Conveyor:

 Powered Roller Top

 24' Long

-Hydraulic System:

 Central Hydraulic Power Unit

 Valve Bank

-Electronics:

 AC/DC Cabinets

-Misc. Operators Control Consoles:

 Main Console with Touch Screen Controls

-Drawings and Manuals

-Spare Parts:

 Snubber Roll for Uncoiler

 Two (2) Spare Blades for Shear

-Removed and in Storage
