48" x .190" x 25,000 Lb. Strilich Cut to Length Line (Used)

General Specifications:

Manufacturer: Strilich

Year of Manufacture: 1985

Material: Aluminum

Shear Stress: 35,000 - 50,000 psi

Yield Stress: 35,000 - 50,000 psi

Coil Weight Max.: 25,000 lbs.

Coil O.D. Max.: 72"

Coil I.D.: 20"

Coil Width: 22" - 48"

Strip Thickness: 0.040" - 0.190"

Cut To Length Range: 36" - 148.25"

Line Speed: 0 - 125 FPM (Infinitely Varible)

Sheet Flatness: Straightener (Removes Coil Set Only)

Stacker Type: Automatic Drop Type

Stacked Weight Max.: 6,000 lb. Capacity

Passline: 48" at Flying Shear

Electrical Supply: 480 V / 3 Ph / 60 Hz

Compressed Air Supply: 80 psi

Direction of Feed: Right to Left

Consisting of the following:

-Single Mandrel Uncoiler:

 Maximum Coil Width Capacity: 48"

 Maximum Coil Weight Capacity: 25,000 lbs.

 72" Maximum Coil O.D.

 18.50"-24.50" Hydraulic Three Arm Mandrel Expansion Range.

 Heavy Steel Cover leaves with tapered nose for easy coil loading.

 Wedge type expansion provides coil stability and constant hydraulic

  loading through the entire expansion range.

 Designed for accessibility and easy maintenance.

 Heavy Duty Construction.

 Hydraulic powered urethane covered overarm snubber roll with banding groove.

 Hydraulic feedup threading drive

 Hydraulic slide base +/- 6" horizontal travel with manual control for

  reel positioning.

 Air Drag Brake, water cooled.

-Hydraulic Z-Type Peeler Table: 8' Long

 Maximum Strip Width: 48"

 Heavy Duty fabricated structural steel constuction.

 1" thick beveled nose reinforced peeler plate.

 Heavy duty hydraulic table positioning cylinders.

 Cylinders piped to valve manifold.

 Free-standing operator control console.

-Adjustable Entry Guide:

 Maximum Material Width: 48"

 Heavy duty welded structural steel frame.

 Four sided hardened guide plates are mounted on heavy duty machined

  steel blocks with acme nuts.

 Guides are adjusted off center line through left and right hand

  acme screws via handwheel.

 Makes the initial centerline threading of the lead edge into the

  straightener pinch rolls easier.

-Combination Dual Work Roll Straighteners on Common Base:

 Maximum Strip Width Capacity: 48"

 Material Thickness Capacity: 0.040" - 0.190"

 4" Dia. and 6" Dia. Work Rolls

 Common Variable Speed AC Vector Drive geared for 125 FPM Max. Roll Speed

 7 Work Rolls (3 over 4) - hardened and ground work rolls in each machine.

 Powered 6" Diameter Air Loaded Entry Pinch Rolls

 All work rolls and pinch rolls are chain driven.

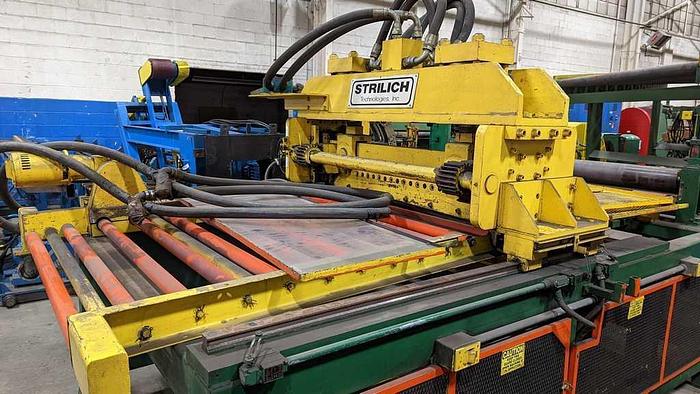

-Flying Cutoff System:

 Hydraulic Cutoff Die complete with D2 HC-HC cutoff blades.

 Rack and Pinion Die Accelerator.

 Indramat Closed Loop DC Servo Drive and Control.

 Cutoff Die mounted on precision ball type slide ways.

 Roller Sheet Support Tables supplied.

-48" x 144" Belt Type Transfer and Inspection Conveyor:

 AC Variable Speed Drive

 Wheels and track to manually pushoff line to one side of the

  machine in order to provide access to permit changing the

  shear blades on the flying shear.

-Drop Type Sheet Stacker:

 Air operated drop arms and bell mouth side pans adjusted off

  center line.

 Air operated back tamper.

 48" x 150" hydraulic lift table complete with powered roller

  top conveyor for end discharge.

-Pallet (Side) Loader to feed pallets into stacker from front

 side location:

 Supplied pallets loaded on table are pushed into stacker.

 Hydraulic driven rack and pinion pusher table.

-Main Operator's Control Station and Electrical Cabinets:

 Meter which indicates machine speed in ft/Min.

 Device which will permit operator to preset the number of parts

  to be cut and which will then stop the machine when preset

  number of parts has been obtained.

-Ancillary Items

 Electrical Drive Enclosure (x2)

 Electrical Transformer

 Main Operators Control Station with Remote Station

 Uncoiler Drag Brake Heat Exchanger Unit

 Entry/Exit Hydraulic Pumping Units

Shear Head Hydraulic Pumping Unit
