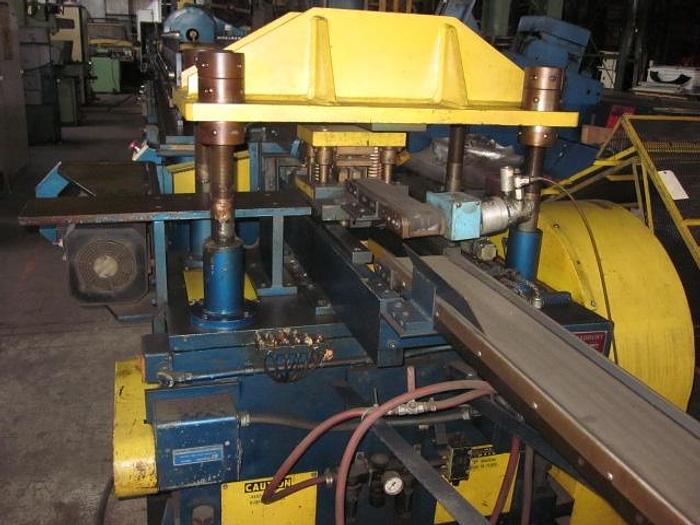

BRADBURY ROLL FORM LINE (USED)

GENERAL SPECIFICATIONS:

MANUFACTURER: BRADBURY

YEAR MANUFACTURED: 1991

LINE INCLUDES:

 BRADBURY RAFTED 1-1/2" ROLL FORMER

 16 PASSES (COMPLETE EXTRA SET OF RAFTS)

 18" ROLLSPACE

 9" HORIZONTAL CENTERS

 4 TO 5-1/2" VERTICAL ADJUSTMENT

 CHAIN DRIVE (DRIVEN WITH 2 GEAR BOXES

        1 FOR EACH SET OF 8 STANDS)

 ADJUSTABLE TRAVERSING BASE WITH 2 POSITIONS

 1750 RPM

 7.5 HP

 BRADBURY ROTARION 2,500 LB. PALLET UNCOILER

 JOHNSON 16 TON OBI PREPUNCH PRESS, S/N: 85003

 1-1/2" STROKE

 175 SPM

 INCLUDES 4" WIDE PROGRAMMABLE SERVO FEED

 LOOP CONTROL

 BRADBURY 4-POST MECHANICAL CUTOFF

 15 TON, OBI

 2" STROKE

 INCLUDES DIE ACCELERATOR

 TOTAL LINE TAKES 100 AMPS, 460 V, 3PH
