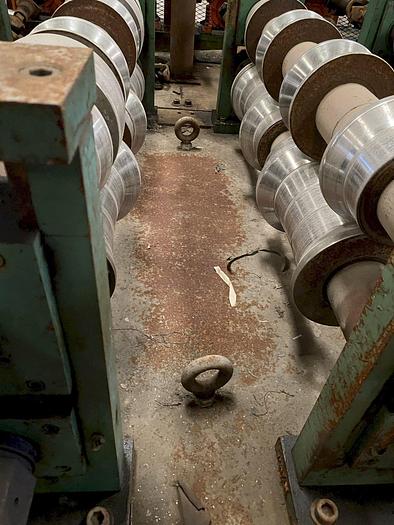

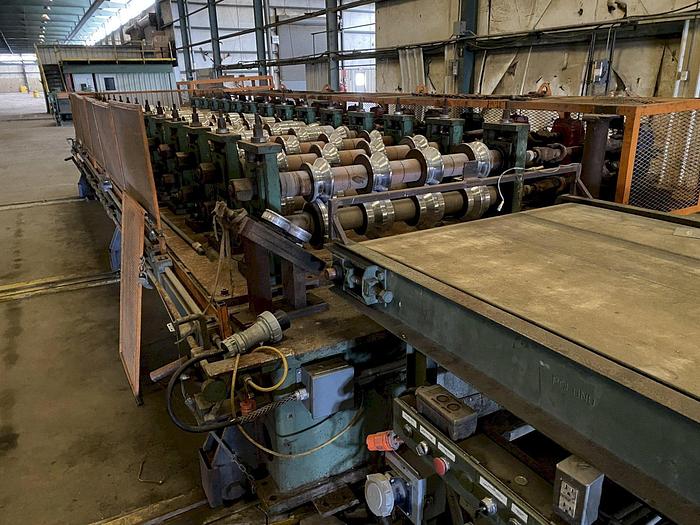

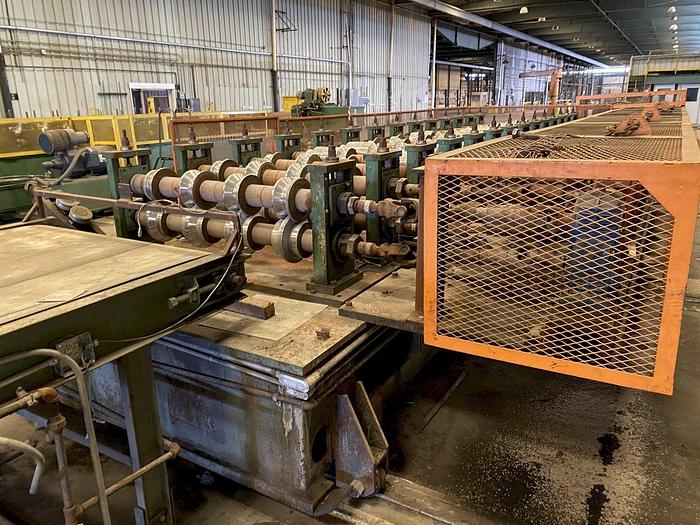

14 STAND X 3.5" X 50" SHADOW WALL PANEL" RAFTED BRADBURY ROLLFORMER (USED)
![Used 14 STAND X 3.5" X 50" SHADOW WALL PANEL" RAFTED BRADBURY ROLLFORMER (USED)](https://i.machineryhost.com/8fa198b182112d958dbd278027515c1f/large-used-14-stand-x-3-5-x-50-shadow-wall-panel-rafted-bradbury-rollformer-used.jpg)
Specifications
Condition | Used |
Stock Number | VX-33166 |
Description
Machine Specifications

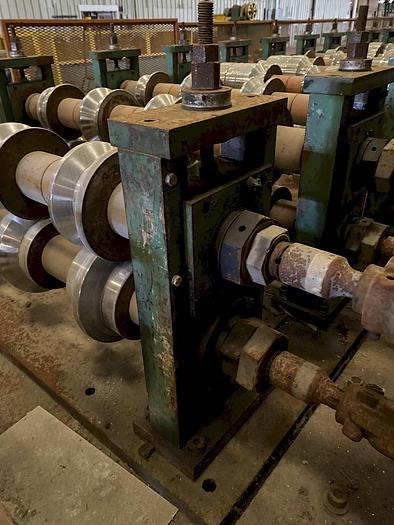

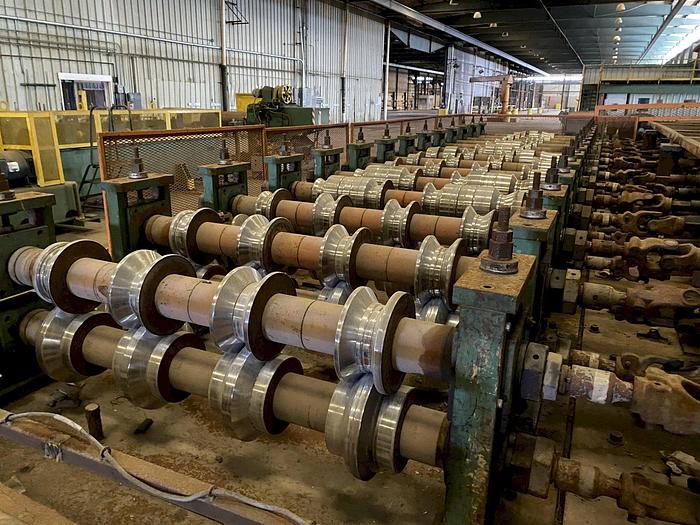

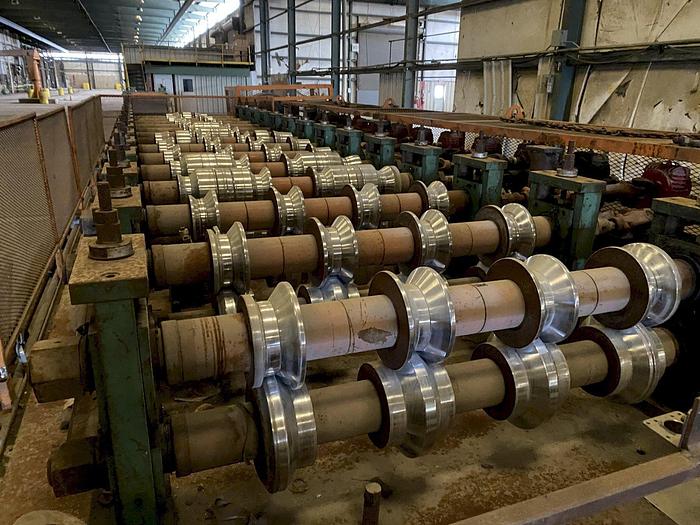

NUMBER OF STANDS ............ 14
NUMBER OF RAFTS .............. 3 RAFTS OF 4, 1 OF 2
ARBOR DIAMETER ................ 3-1/2"
ROLL SPACE .......................... 50"
HORIZONTAL CENTERS .......... 20"
VERTICAL ADJUSTMENT ......... 5" - 10"
EQUAL GEARING .................... YES

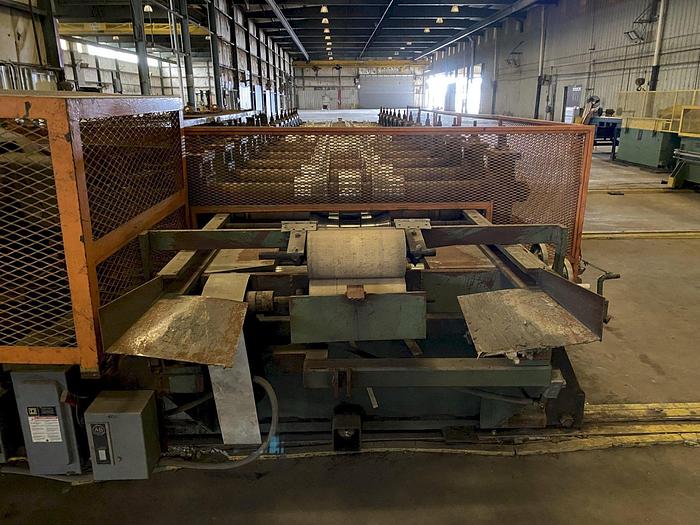

ENTRY GUIDES ....................... YES, ADJUSTABLE

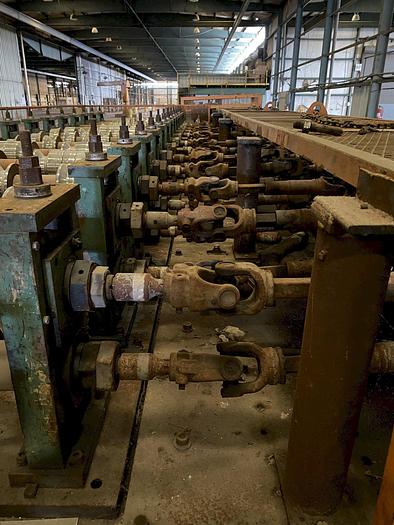

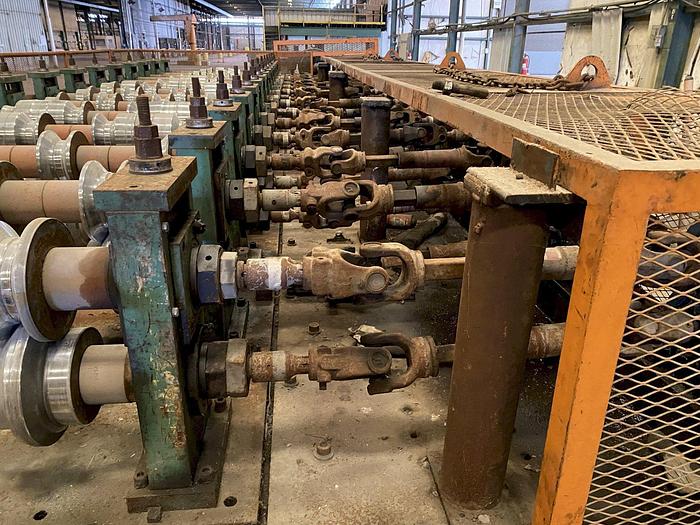

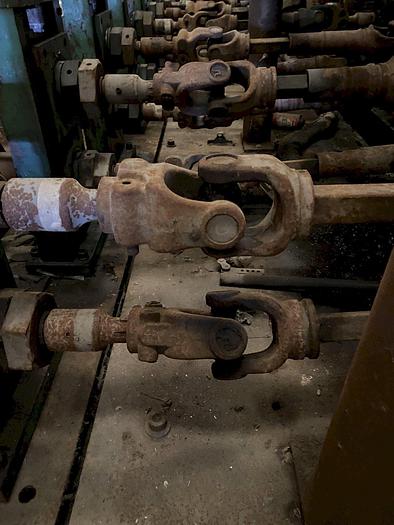

UNIVERSAL U JOINT DRIVE ..... YES

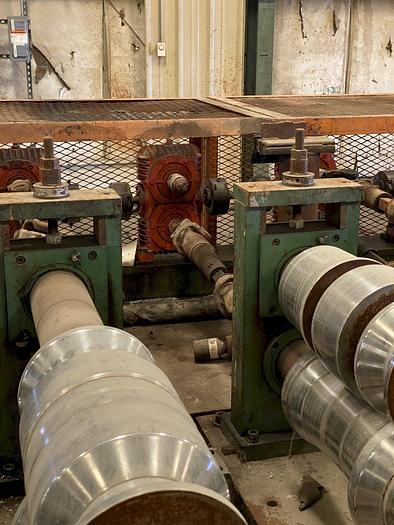

U JOINT DRIVE GEAR BOXES... YES

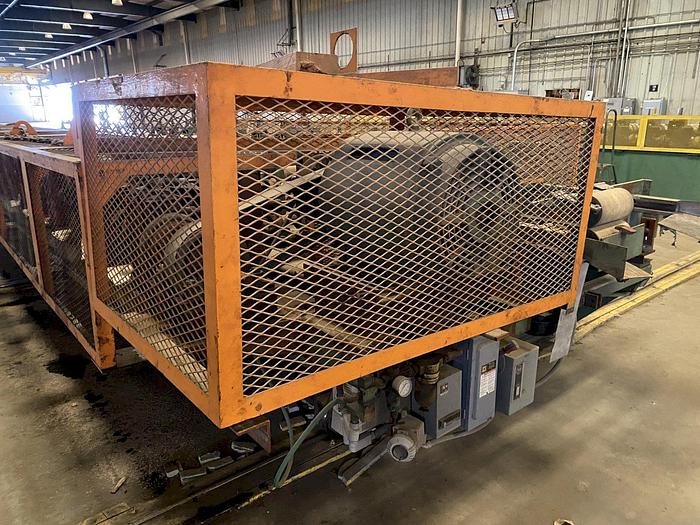

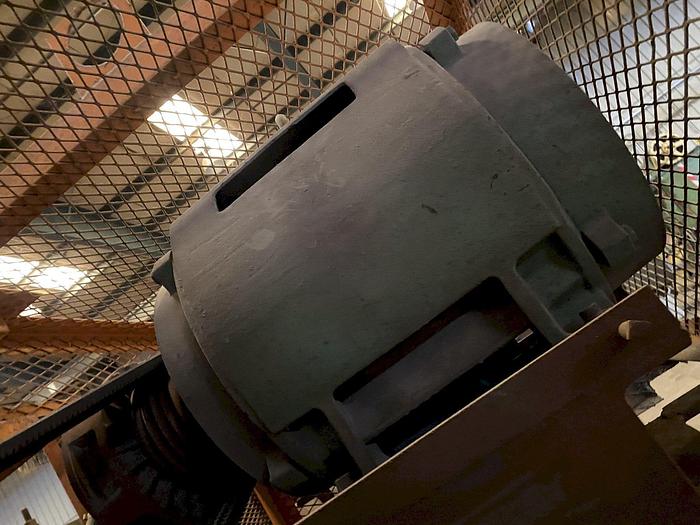

MOTOR ................................... 60 HP
TOOLED FOR SHADOW & CENTENNIAL PANEL
PANEL PROFILE ........................ SEE DRAWING
BEGINNING STRIP WIDTH .......... 43"
WIDTH OF PANEL COVERAGE... 36"
MATERIAL CAPACITY ................ 24-26 GA
NUMBER OF RIBS ..................... 4
DISTANCE BETWEEN RIBS ....... 12"
DEPTH OF RIBS ........................ 1.312"
