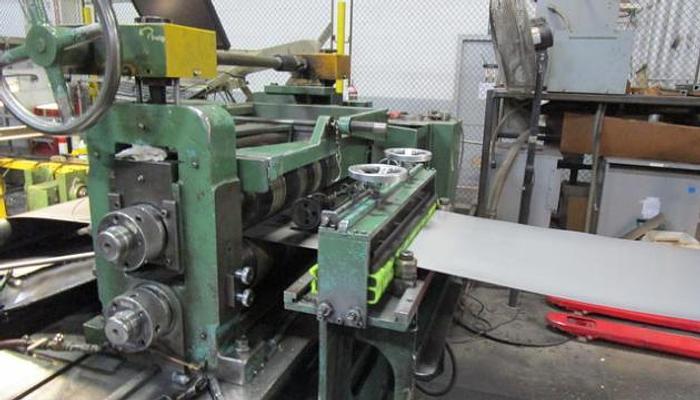

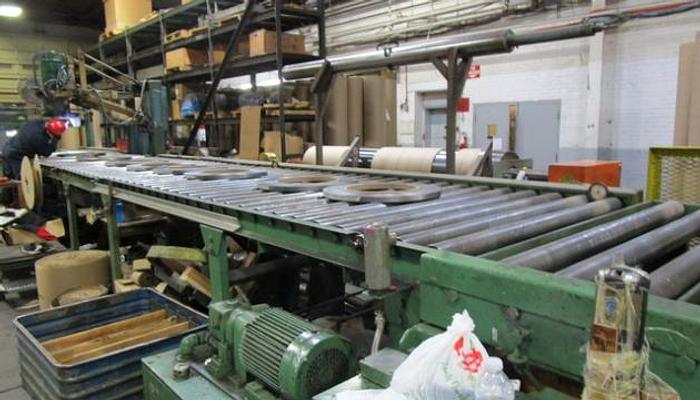

24" x 0.075" x 10,000 Lbs. Double Loop Ruesch Slitting Line with Banding Line (Used)
Specifications
| Manufacturer | Ruesch |
| Condition | Used |
| Stock Number | VX-1660 |
Description
Manufacturer: Ruesch
Model #N2707
General Specifications:
Gauge Range: 0.001" - 0.075"
Widths Produced: 0.625" - 24"
Minimum Start Width: 6"
Maximum Start Width: 24.5"
Complete Line with The Following Components:
Braner L-Type Coil Car
Ruesch Mandrel Uncoiler
Coil ID: 16"/20"
Coil OD: 36" Max.
Hydraulic Expansion
Sliding Base
Powered Hold Down Roll
Entry Edge Guides
Looping Pit #1
Pit Cross Over Table

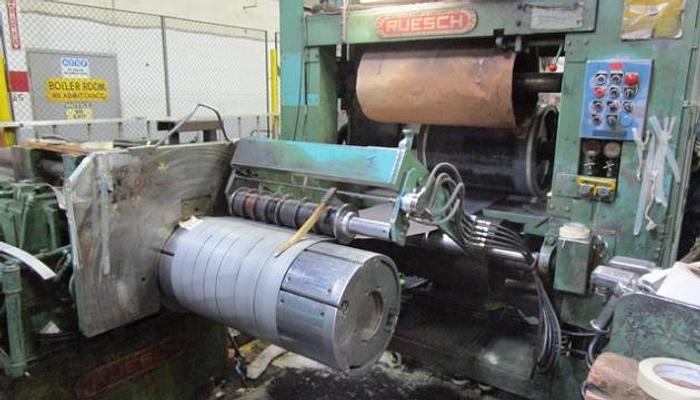

Ruesch Precision Slitting Head
Arbor Diameter: 4.125"
Knife Diameter: 4.125" X 8"
Spacer Diameter: 4.125" X 5.250"
Looping Pit #2
Loop Pit Cross Over Table
Ruesch Rotary Tension Stand
Ruesch Recoiler
Coil ID: 6"/16"
Coil OD: 36"
Rewind Max. Weight: 10,000 Lbs.
50 HP Motor
Braner 3 Arm Turnstile
Complete Banding Line
Horn Type Downlayer
Signode Head
Fork Stacker
Complete Line with Hydraulics, Electrics, Controls, Drawings and Tooling
Installed and Running
