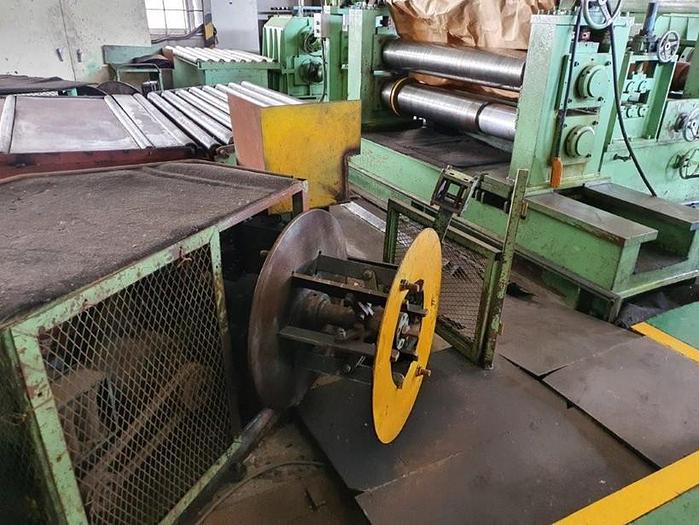

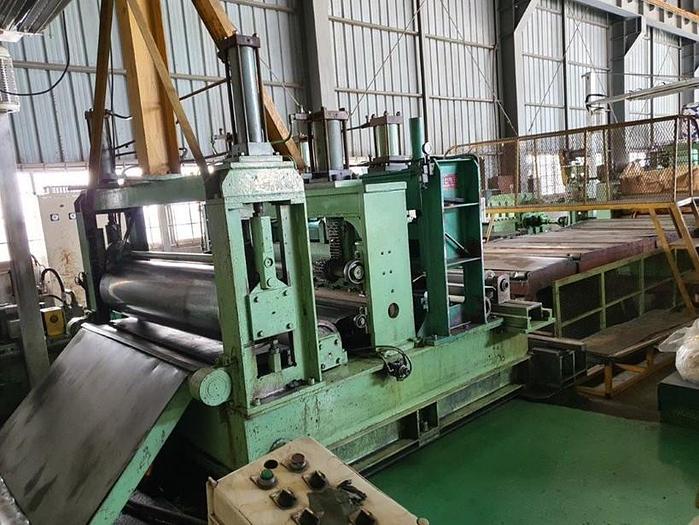

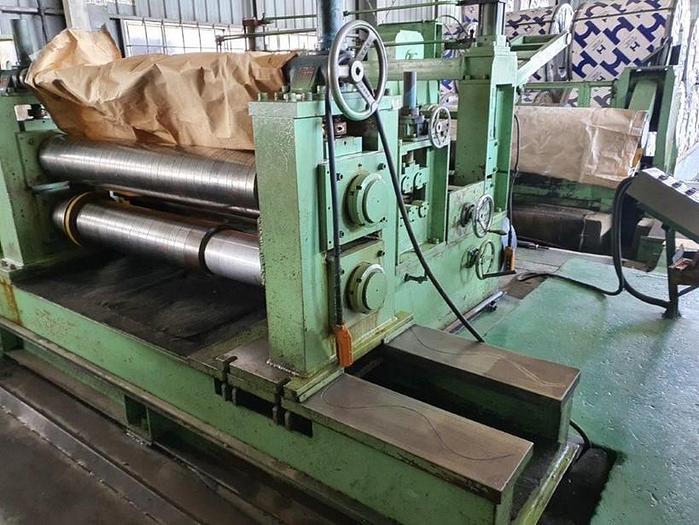

1680 mm (66") x 3.2 mm (.126") x 20,000 kg (44,000 Lb.) Slitting Line (Used)

MATERIAL DATA:

MATERIAL: CR, GI, COLOR COIL

COIL THICKNESS: MIN. 0.3mm ~ MAX. 3.2mmT

TENSILE STRENGTH: Max. 61 kg/mm2

COIL WIDTH: MIN. 600 mm ~ MAX. 1,680mm

COIL WEIGHT: MAX. 20,000 Kg

COIL INSIDE DIAMETER: 610 mm (RUBBER SLEEVE)

COIL OUTSIDE DIAMETER: MIN. DIAMETER 800 mm - MAX. DIAMETER 2,000 mm

RECOILING INSIDE DIAMETER: 508 mm

RECOILING WEIGHT: MAX. 20,000 Kg

LINE DATA:

LINE SPEED: MAX. 10 - 250m/min

THREADING SPEED: 20m/min

CUTTING SYSTEM CONTROL SYSTEM: PULL & DRIVE CUTTING SYSTEM

CONTROL SYSTEM: DC POWER CONTROL

MINIMUM SLITTING WIDTH: MIN. 31 mm

CUT NUMBER: MAX. 25 CUTS x 24 STRANDS

LINE INCLUDES:

1. ENTRY COIL CAR WITH COIL SKID

2. UNCOILER WITH SNUBBER ROLL

3. DRUM SUPPORT

4. COIL OPENER

5. THREE BENDING ROLL

6. SIDE GUIDE

7. SLITTER

8. SPARE SLITTER AND CHANGING CAR

9. SCRAP WINDER

10. THREADING TABLE WITH END PAD

11. LOOP TABLE

12. TENSION PAD WITH SEPARATOR

13. PINCH ROLL WITH TABLE

14. EXIT SHEAR

15. BRIDLE ROLL WITH GUIDE TABLE

16. RECOILER WITH COIL PUSHER & SEPAô€€–TOR:

17. DRUM SUPPORT FOR RECOILER

18. RECOILER COIL CAR WITH COIL SKID

19. HYDRAULIC EQUIPMENT

20. PNEUMATIC EQUIPMENT.

21. SLITTING TOOLS
