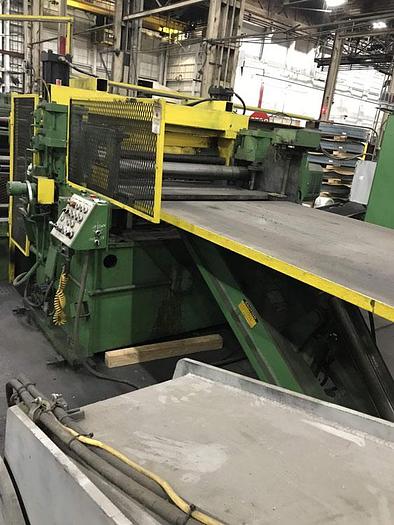

60" x .250" x 50,000 Lb. Cincinnati/Pro-Eco Slitting Line (Used)
Specifications
| Manufacturer | Cincinnati/Pro-Eco |
| Condition | Used |
| Stock Number | VX-1701 |
Description
General Specifications:
Manufacturer: Cincinnati/Pro Eco
Weight Capacity: 50,000 Lbs. In/40,000 Lbs. Out
Gauge Range: .020” – .250”
ID Range: 16” – 20”
OD Range: 72” Max
Line Direction: Left to Right
Line Includes:
Coil Car
52" wide Deck
72" OD (39" "V" to Side Mast)
Approx 15" from Floor to bottom of "V"
Self Enclosed Hydraulic Power Unit
Uncoiler
40,000 Lb. Capacity without Outboard Support, 50,000# with outboard.
61" face on 16" Drum
52" from Center Line of Mandrel to Floor
43" from Center Line of Mandrel to Over Arm Shaft
16" ID 20" with Pads
Hydraulic Grip & Expansion of Mandrel
72" OD
Slide Base
Water Cooled Wichita Brake (to be confirmed)
Hold Down (full width)
Entry Unit
Peeler Table
Entry Side Guides
Entry Pinch Rolls
Crop Shear- 64" width
Gamma Ray Gauge
Slitter Heads, Pro-Eco
(2) Injector Heads on Rotary Table
9" diameter x 65" face Arbors
150 HP Reliance DC Motor, 500V., 500/2000RPM
Nut All Reducer: 6.14:1 ratio
With full complement of shimmed tooling(51-.5000" wide knives x 13
3/6" OD & 59- .5000" wide x 13 1/8" OD)
Scrap Winders
Oscillating design
20" wide x 30" dia. Spool
Pit Cross Over Over Table
Pit is approx 13' in length
Progressive Drag Board Tension Stand
64" Face
Separator Bar
Recoiler
40,000 Lb. Capacity, Outboard- Support available to Make 50,000 Lbs.
20" ID (Pads for 24")
Hydraulic Grip & Collapse of Drum
68" Dum Face
Overarm Seperator
49" from Center Line of Drum to Floor
39" from Center Line of Drum to Shaft of Over Arm Seperator
150 HP DC Motor, 240V, 650/1900 RPM
to a 3 speed Drive All Reducer: 1.00:1, 1.640:1 & 3.40:1
to a Right Angle Reducer: 5:1 ratio
to the recoiler drive gears which is believed to be 1:1
Pro Eco Exit Coil Car
60,000 Lb. Capacity
66" wide Deck
72" OD
Approx 12" from bottom of "V" to floor
Approx 39" from "V" to side mast
Self enclosed hydraulic power unit
Coil Steadies
3 Arm Entry Turnstile Can be had at Extra Cost
61" Arm Length
65" From Floor to top of Arm
6.5" wide x 12" Deep Channel for C-Hook use
Approx 85" total Radius
Approx 33" dia base
