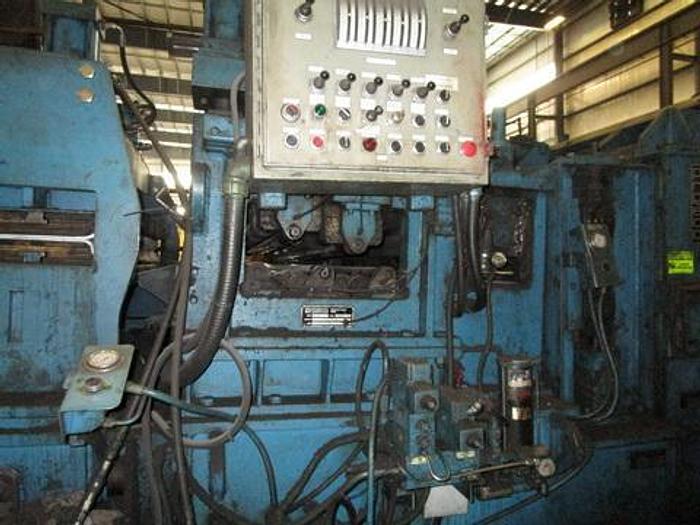

72" x .250" x 74,000 Lbs. Pro Eco Slitting Line (Used)

Material: CRS, HRS, HRP&O

Max. Shear Stress at .250 ins. Thickness: 65,000 psi.

Max. Yield Stress: 50,000 psi.

Min. Yield Stress: 30,000 psi.

Max. Coil Weight: 74,000#

Max. Coil Width:

Entry - 74 ins. (72 ins. Nominal)

Exit - 72 ins.

Max. Coil O.D.: 72"

Min. Coil O.D: 36"

Coil I.D: Entry - 20"-30" & Exit - 20" & 24"

Max. Strip Thickness: 0.250 ins.

Min. Strip Thickness: 0.060 ins.

Line Speed:- Constant Speed: 200/600 FPM

Line Direction: Left to Right

Mode of Operation: Tight line, Tight line - Slitter assist, Full Loop - Drive Slit

Complete Line With

3 Coil Storage Ramp

Coil Car

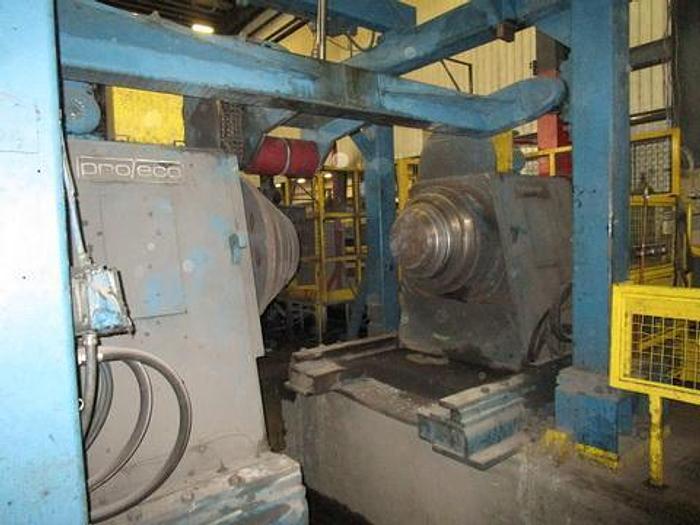

Double Cone Uncoiler

Sliding Base

Dual Water Cooled Brakes

Feed-Up Drive

Powered Hold Down Roll

North American Edge Control

Peeler Table

3 Roll Coil Breaker with Entry Pinch Rolls

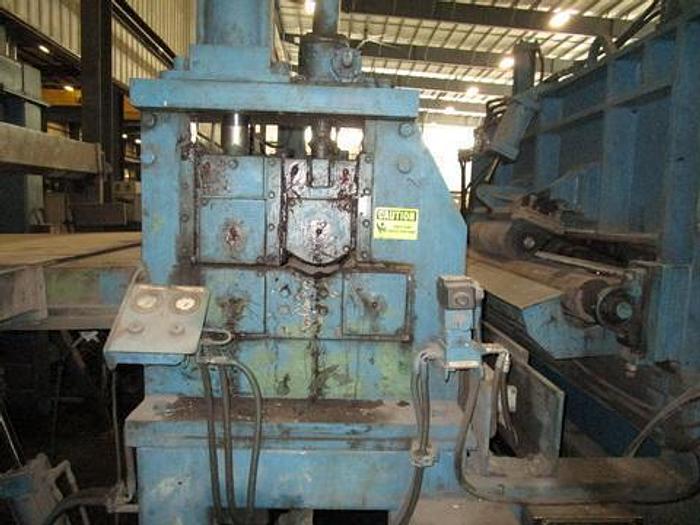

Crop Shear

Model HDSC-250-72

2 Roll Edge Guide Unit

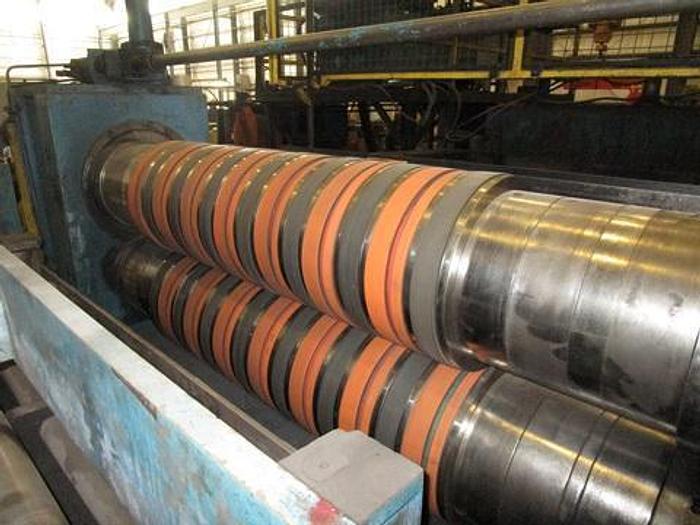

2 Injector Slitter Heads with 12" Diameter Arbors

Eccentric Arbor Adjustment

Hydraulic Outboard

Hydraulic Arbor Adjustment

150 HP DC Drive

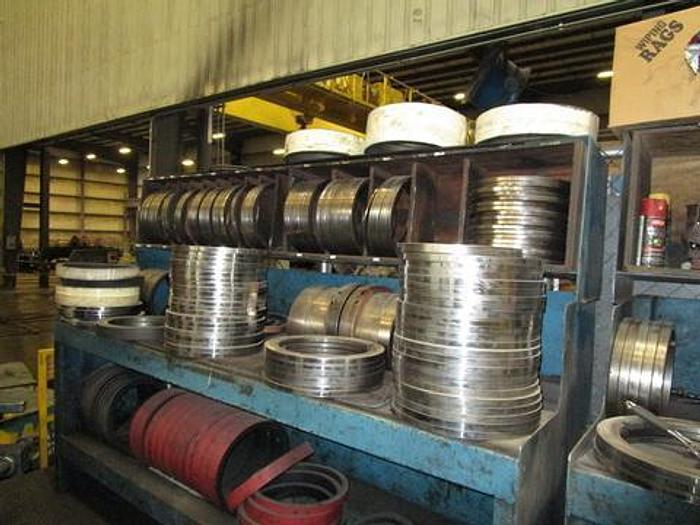

Shimless Tooling

Looping Pit Cross Over Table

Drag Board Tension Stand with Sliding Base

2 Braner Scrap Winders

Korflex Leveler

Model STU-DR-KF-72

2 1/4" Diameter Rolls

3/16" Thickness Capacity

Neutralizing Roll

6 Rolls

5 Flights Top & Bottom Back-Ups

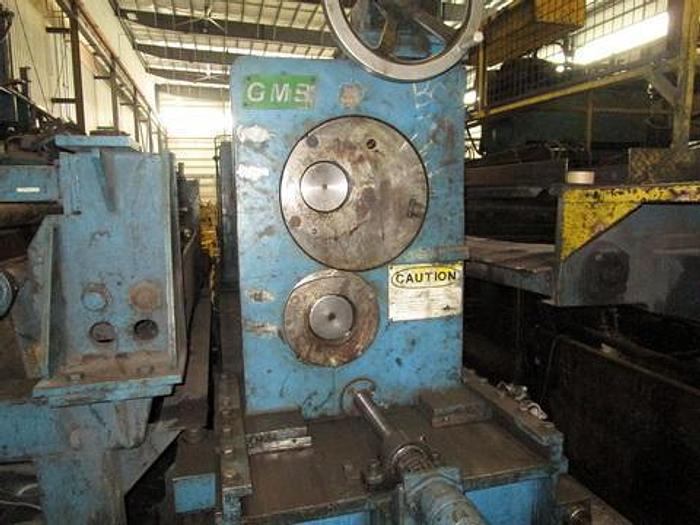

Pinch Roll Stand

Exit Crop Shear

Feed-Up Table

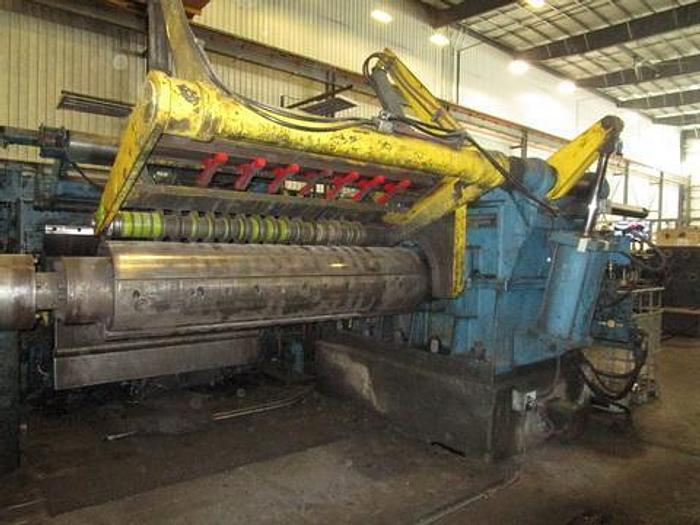

Recoiler with Outboard Bearing Support

200 HP DC Drive

2 Speed Gear Box 18.862 : 1 & 56.565 : 1 Ratios

Full Hydraulic Drum

Push-Off

Overarn Seperator

Exit L-Type Coil Car

Shimless Tooling

Allen Bradley Panelview 1000 Digital Readouts

Allen Bradley PLC

Allen Bradley Powerflex Digital Drives

Fully Complete Line Installed In Plant
