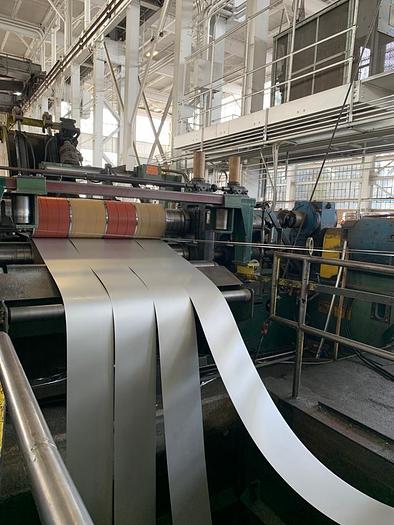

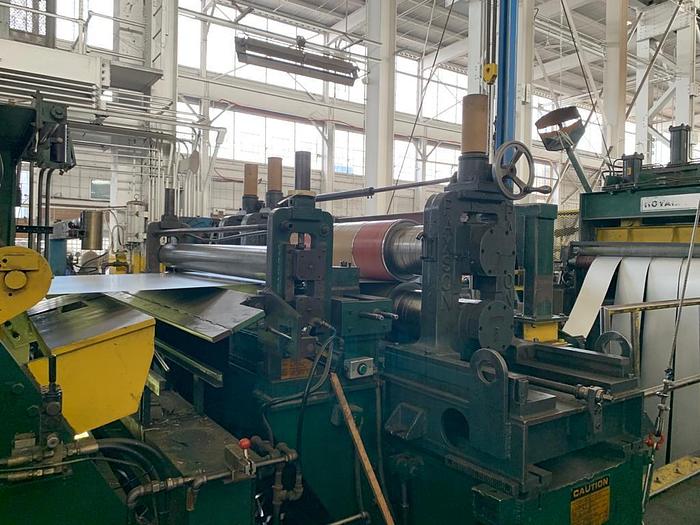

60" x .250" x 40,000 Lbs. Paxson Dual Head Loop Slitting Line with Banding Line (Used)
Specifications
| Manufacturer | Paxson |
| Condition | Used |
| Stock Number | VX-1719 |
Description
Manufacturer: Paxson
Line Direction: Left to Right
Complete Line with the Following Components:
L-Type Entry Coil Car
Double Cone Uncoiler
Max Coil Weight: 40,000lbs
Wichita Water Cooled Brake
Free Standing Peeler / Powered Hold Down Roll
Entry Edge Guides
Entry Pinch Rolls
Lorane Thickness Gauge
(2) Paxon Driven Slitting Heads
(Crane Removal)
Parallel Knive Adjustment
Shimless Tooling
100HP Motor Drive
Royalton Scrap Winder
Exit Edge Guides
Entry and Exit Cascade Rolls
Pit Cross Over Table
Royalton Combination Rotary/Pad Type Tension Stand
Recoiler
Overarm Separator
Full Hydraulic Drum
100HP Motor Drive

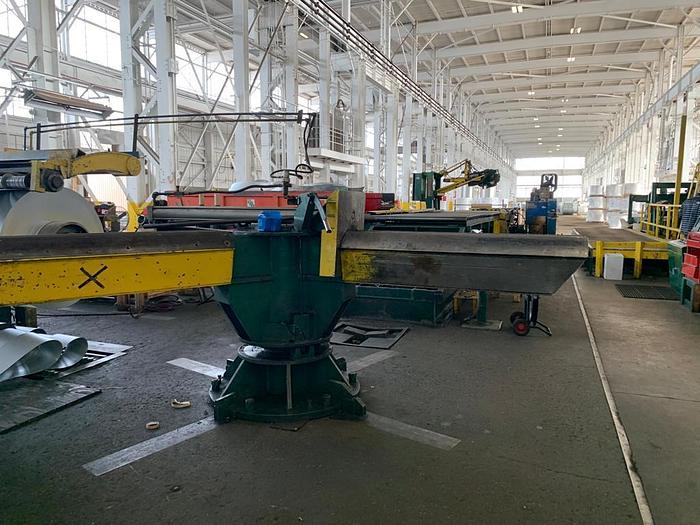

4 Arm Exit Turnstile
40,000lbs Max Weight per Arm
Coil Downlayer (Horn Type)
72" Coil OD
20' Powered Conveyor
Banding Table
Exit Table
Complete Line with Hydraulics, Electrics and Controls
Installed
