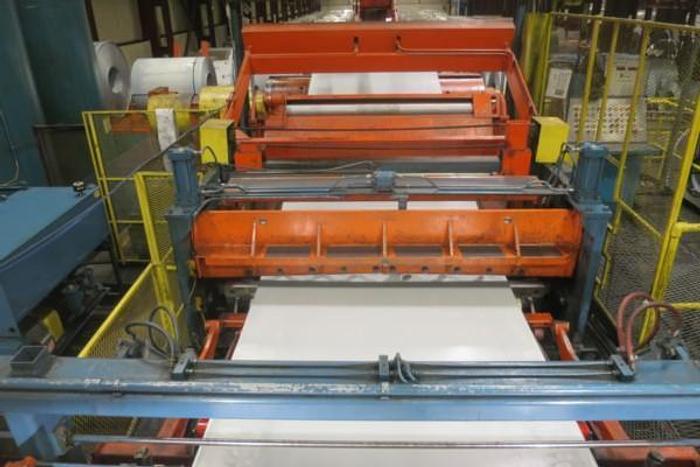

76" x .100" x 72K AUTOMATIC FEED TRAPEZOID CUT-TO-LENGTH LINE - UPGRADE 2020
Specifications
| Manufacturer | Automatic Feed |
| Year | 1989 |
| Condition | Used |
| Stock Number | VX-2448 |
Description
LINE OVERVIEW:
THIS IS AUTOMATIC FEED COMPANY TRAPEZOID CUT TO LENGTH LINE HAD A MULTIMILLION DOLLAR CONTROLS, MOTOR AND STACKER UPGRADE IN 2020 BY AUTOMATIC FEED COMPANY. THE LINE IS RUNNING AND IN OPERATION IN USA PLANT.
GENERAL LINE SPECIFICATIONS:
MANUFACTURER - AUTOMATIC FEED COMPANY
YEAR - 1989 (NEW CONTROLS UPGRADE 2020)
TYPE - TRAPEZOID CUT TO LENGTH LINE
MATERIAL - 0.020" - 0.100"
YIELD STRENGTH - 25,000 PSI - 40,000 PSI
DEPENDING ON WIDTH & THICKNESS A HIGHER YIELD STRENGTH IS FEASIBLE. CONTACT OUR OFFICE FOR FURTHER INFORMATION
WIDTH RANGE - 24" - 76"
TRIM WIDTH - 74"
ID RANGE - 19" - 25"
OD RANGE - 36" - 84"
LINE SPEED - 300 FPM
SHEAR SPM - 18 - 70
SHEAR ANGLE CUTS - 30 DEGREES MAXIMUM +/-
SHEAR STROKE - 6"
SHEAR SHUT HEIGHT - 30"
STACKER WIDTH RANGE - 24" - 74"
STACKER LENGTH RANGE - 24" - 168"
MAXIMUM STACK WEIGHT - 20,000#
MAXIMUM LIFT & TRANSPORT WEIGHT - 40,000#
MAXIMUM STACK HEIGHT - 24" (INCLUDING DUNNAGE)
LINE DIRECTION - RIGHT TO LEFT
GENERAL LINE COMPONENTS:
(4) STATION TRAVELING COIL STORAGE RACK
V-TYPE TRAVELING COIL CAR W/ HYDRAULIC LIFT
ANTI-TIP GUIDES
DUAL STUB MANDREL EXPANDING UNCOILER
AC MOTOR - 125 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
HOLDDOWN ROLL & PEELER ASSEMBLY
PINCH ROLL AND ENTRY CROP SHEAR ASSEMBLY W/ SCRAP CONVEYOR
EDGE TRIMMING UNIT
BUTECH MDL. SC-250 SCRAP CHOPPERS
(4) AC MOTORS - 30 HP, 1750 RPM & (3) SERIES 2400 MODULAR FLUX VECTOR AC INVERTERS
(FOR THE PINCH ROLL, SCRAP CHOPPER, ENTRY PINCH ROLL, AND EXIT PINCH ROLL)
WASHING & RINSE UNIT WITH HIGH PRESSURE PUMP & FILTER SYSTEM
19 ROLL 5HI PRECISION LEVELER
1.9375" ROLL DIAMETER
76" WIDTH
AC MOTOR - 250 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
LOOPING PIT #1 & INSPECTION TABLE
ECT STRIP OILER
PINCH ROLL ASSEMBLY
LOOPING PIT #2
THREADING TABLE
DIGITAL CONTROLLED ROLL FEED
AC MOTOR - 100 HP, 1000 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
UPCUT SHEAR
AC MOTOR - 30 HP, 0-1750 RPM

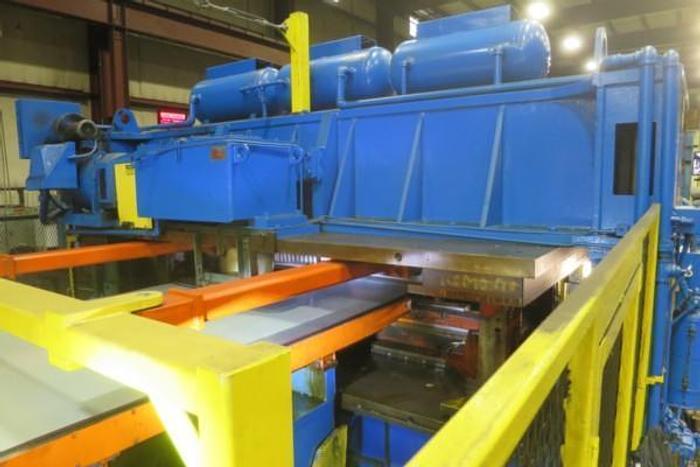

OSCILLATING/TRAPEZOID SHEAR ASSMEBLY
DIES STYLE - CASSSETE TYPE - MULTIPLE DIES AVAILABLE
AC MOTOR - 75 HP, 1150 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
BELT RUNOUT CONVEYOR
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR EACH STACKER
MAGNETIC BELT CONVEYOR & TWO STATION MAGNETIC STACKER
AC MOTOR - 30 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER FOR EACH STACKER
NEW MAGNET SYSTEM INSTALLED IN 2020 WITH FUTURE AREAS FOR VACCUUM CHAMBERS
REJECT PILER
LEFT AND RIGHT DISCHARGE TRANSFER CONVEYOR
AC MOTOR - 15 HP, 1750 RPM & SERIES 2400 MODULAR FLUX VECTOR AC INVERTER
100' + RUNOUT OUT CONVEYOR ON RIGHTHAND (R-L DIRECTION) OF STACKER WITH SCALES
EXTENSIVE ELECTRICAL AND CONTROLS UPGRADE IN 2020 INCLUDING:
NEW ALLEN BRADLEY PLC UPGRADE FOR LINE AND STACKER WITH CONTROLOGIX WITH
GUARDLOGIX PROCESSORS & DYNICS TOUCHSCREENS
NEW COIL LINE & STACKER ADJUSTMENT FEEDBACK DEVICES
AUTOMATIC FEED COMPANY'S AUTOMATION INTEGRATION MANAGER (AIM) VISUAL BASIC
OPERATOR INTERFACE
NEW SAFETY DEVICES ON COIL LINE AND STACKER
108 NEW MAGNET ASSEMBLIES FOR THE STACKER AND ALLOW ROOM FOR VACCUUM CHAMBERS
IN THE FUTURE
UNICO AC SERVER DRIVES INTEGRATED TRHOUGHOUT THE LINE
UNICO SERIES 4000 SERVO DRIVE CONTROLLERS THROUGHOUT THE LINE
PROVIDE AUTOTHREAD CAPABILITY STARTING AFTER THE CROP SHEAR
