General Specifications:

Material: CR, GI, COLOR COATING COIL

Gauge Range: .012" (0.3mm) - .126" (3.2mm)

Width Capacity: 20" (500mm) - 63" (1,600mm)

Weight Capacity: 55,000 Lbs. (25,000Kg)

I D Range: 20 (∅508mm) - 24" (∅610mm) (RUBBER SLEEVE 150mm x 3EA)

O.D. Range: 30" (∅800mm) - 78" (∅2,000mm)

PRODUCT SHEET DATA:

Line Speed: 32 - 260 FPM (10 - 80m/min)

Threading Speed: 65 FPM (20m/min)

Sheet Length: NO.1 Stacker - MIN. 300 mm (11.8”) - MAX 3,000 mm (118.1”)

                        NO.2 Stacker - MIN. 300 mm (11.8”) ~ MAX 5,000 mm (196.9”)

Bundle Weight Capacity:  NO. 1 Stacker - 6,600 Lbs. (3,000Kg)

                                NO. 2 Stacker - 11,000 Lbs. (5,000Kg)

Shear Type: ROTARY SHEAR

Control System: AC Servo Controls

Pass Line Ht: FL (+) 1,200 mm (47.2”)

Length Tolerance: ± 0.3mm/m (.012”) (AT UNIFORM VELOCITY)

                              ± 0.5mm/m (.020”) (AT INCREASE & DECREASE VELOCITY)

 Diagonal: + 0.5 mm/m (.020”)

 Line Direction: Right to Left

(VIEW OF THE OPERATION SIDE)

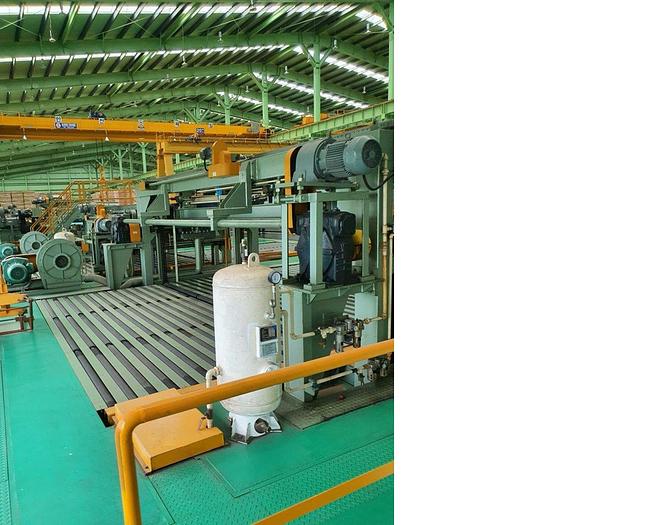

Line Includes:

Coil Staging Area

Pit Type Coil Car

Uncoiler with Outboard Support Arm and Hold Down Roll

Peeler/Pinch Roll Unit

Precision Leveler, 6-HI

Feed Roll

Measuring Roll

Rotary Shear

Run Out Conveyor

Reject Bucket

Stacker 1

Stacker 2
