72" x .375" x 60,000 Lbs. Red Bud EPS Coil Line (Used)
Specifications
| Manufacturer | Red Bud |
| Year | 2011 |
| Condition | Used |
| Stock Number | VX-3092 |
Description
GENERAL DATA:
Line Direction: Right to Left
Modes of Operation: Speed: 150 PPM (46 MPM) Maximum
MATERIAL DATA:
Type: HRS
Maximum Tensile Strength@ Max. Thickness: 80,000 PSI (551.58 N/mm2)
Maximum Yield Strength@ Max. Thickness: 60,000 PSI (413.68 N/mm2)
Maximum Thickness: 0.375" (9.53 mm)
Minimum Thickness: 0.043" (1.09 mm)
COIL SPECIFICATIONS:
Maximum Entry Weight: 60,000 Lbs. (27,216 kg)
Maximum Entry Width (Machine Clearance): 75” (1905 mm)
Maximum Entry Coil Outside Diameter: 84” (2134 mm)
Maximum Uncoiler Mandrel Diameter: 31” (787.4 mm)
Minimum Uncoiler Mandrel Diameter: 23” (584.2 mm)
Maximum Exit Weight: 60,000 Lbs. (27,216 kg)
Maximum Exit Width: 75” (1905 mm)
Maximum Exit Outside Diameter: 84” (2134 mm)
Maximum Exit Inside Diameter: 24” (609.6 mm)
Minimum Exit Inside Diameter: 20” (508 mm)
MOTOR DATA:
EPS Cell Drive/ Per Cell: Approx. 2100 HP (1566 KW) AC
Hydraulic Power: 200 HP (149 KW) AC / 66-66-66-33 GPM (250-250-250-125 LPM) Pump
Closed Loop Coolant: 1.5 HP (1.119 KW) Pump / 3 HP (2.238 KW) Blower
Exit Coil Car: Hydraulic
ELECTRICAL: 460 Volt 3 Phase
AIR: 80 PSI (0.55 N/mm2)
TEMPERATURE:
Maximum Ambient Temperature: 100˚F (38˚C)
Minimum Ambient Temperature: 35˚F (2˚C)
LINCE INCLUDES:
(1) HI-TORQUE, PLC, MAIN CONTROL-PLC
(1) Brush Coil Line, Main, Operator Platform
(1) 200H-66-66-66-33, VARI-VOL, POWER UNIT, 385 GAL
(1) Air Blower, Type, Cooler-Hydraulic
(2) Heavy Duty: Hydraulic Accurnulator-5
(1) Lo-Hi-Temp, Lo-Level, Main Disconnect
(1) Hi-Torque Hyd-Elec, SCS, Line Piping/Wiring
(1) COIL INSPECTION, REMOVAL/BANDING STATION
(1) C-HOOK SPACE , FOUR ARM, POWERED TURNSTILE
(1) Uncoiler, 23”-31” EXP X 84” OD
Heavy Gage, Clutch Motor Drive-SB
8-1/2 Dia. x 34” Wide, Overarm-SB
(1) Increments 1”, Scale 1/2", Graduated Mandrel
(1) Clockspring, Contain,Coil Guard
(1) Uncoiler, w/Coil Rack, Operator Platform-Brush
Sliding Base, Uncoiler, Support Arm
Optical, Edge Guide System-32
(1) EXT, HEAVY GAGE, PEELER BREAKER-32
Peeler, Tail Guard/Overarm
(1) Pass Line Ht, as Required, Free Standing Support-SL
(1) Threading/Breaking, Pinch Rolls-38-72
(1) BLANKS DIRECT DOWN SHEAR-CROP-50T, 1-1/2R
(1) SM0S-72 R60-65, 8 DIA X 11 ROLL STRAIGHTENER
Hydra-Drive, Hi-Lo, Dual Speed Power-PLC
Deflection Controlling Hi-Speed System
Push-Button, Dial Readout, Power Roll Adjust
Pass Line Ht, 72 Anti-Slip, Platform with Steps
Heavy Duty, Roller, Inspection Area-HG
SCCS Coil Cleaner, Exit, Conveyor/Dryer

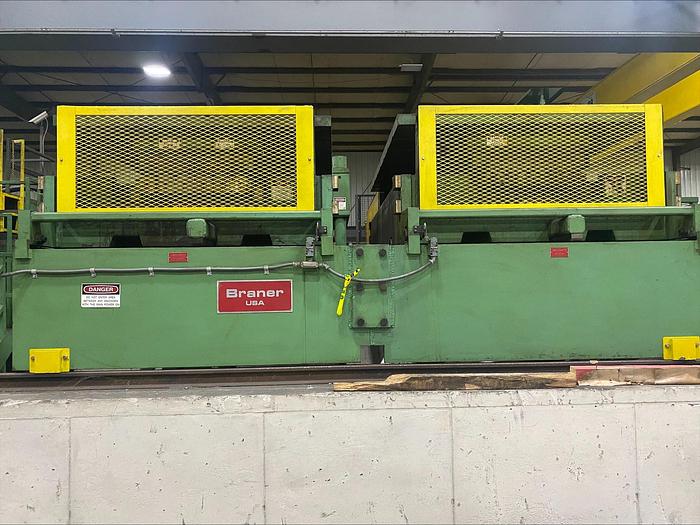

(1) Braner Leveler with 2 Cassettes
(1) BLANKS DIRECT DOWN SHEAR-CROP-SOT, l-1/2R
(1) TRAVERSING, RECOILER ALIGNMENT SYSTEM-E
Thread System, Long, Operator Platform
(1) RC30-80 20IDX84OD TENSION TYPE RECOILER-TRAVERSING
Perimeter, Light Curtain
Parallel, Power Drive-400
Recoiler, Presence Sensing, Laser Scanner
(1) COIL INSPECTION REMOVAL/BANDING STATION
(1) CLES-80 Integrated Electronic Scale
(1) C-HOOK SPACE FOUR ARM POWERED TURNSTILE
