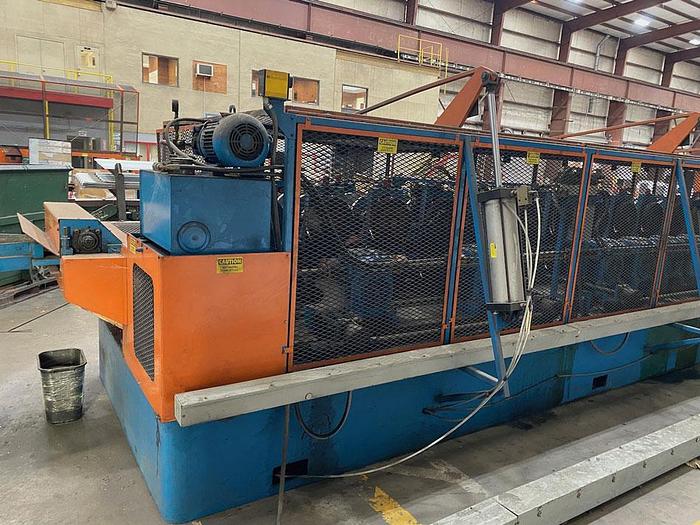

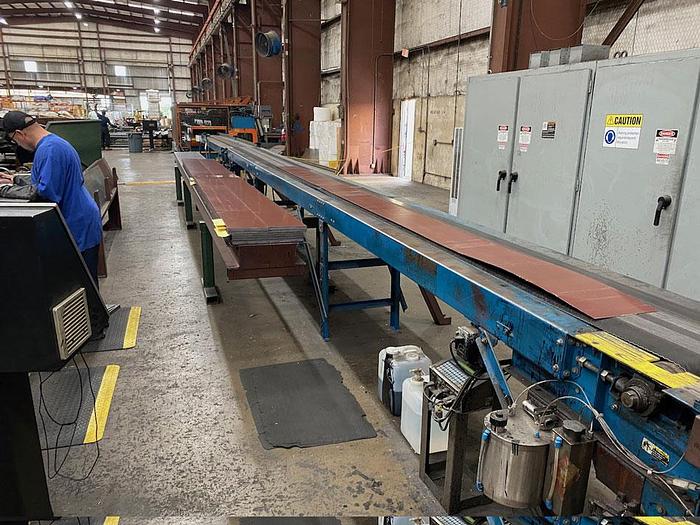

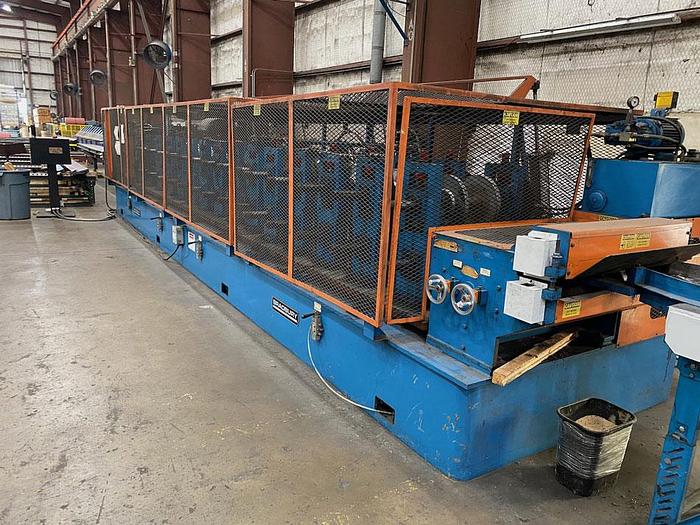

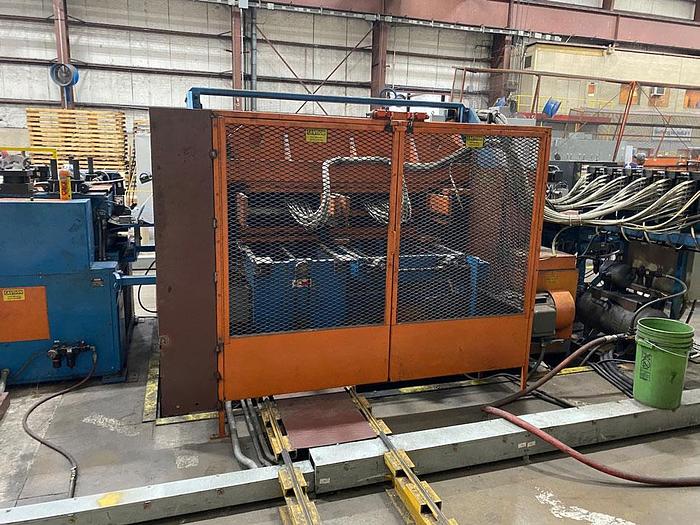

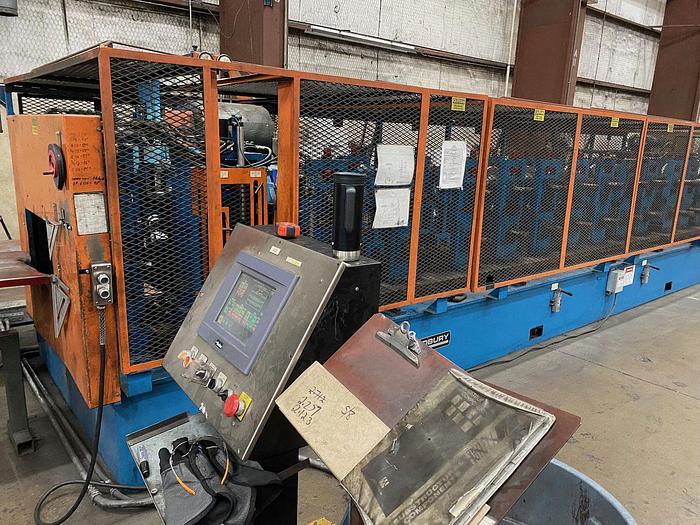

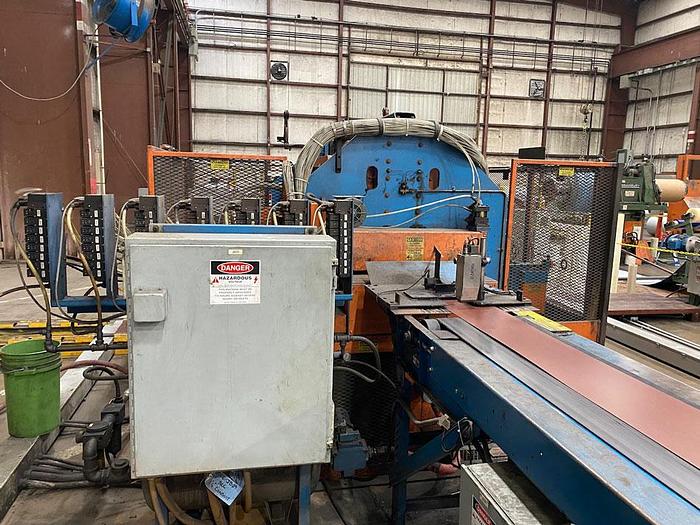

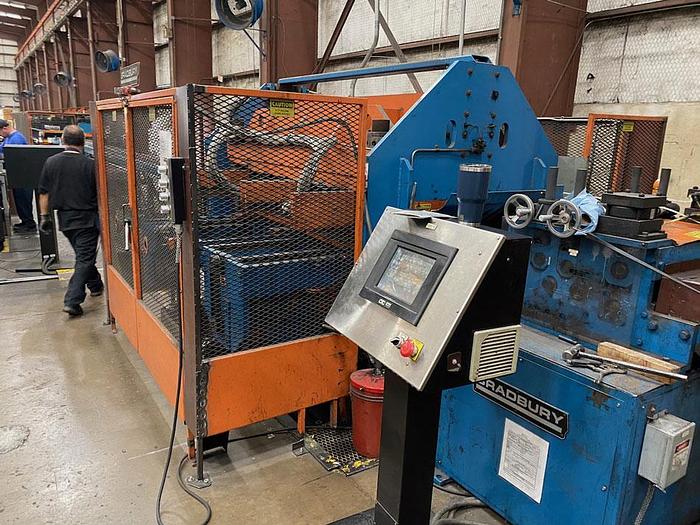

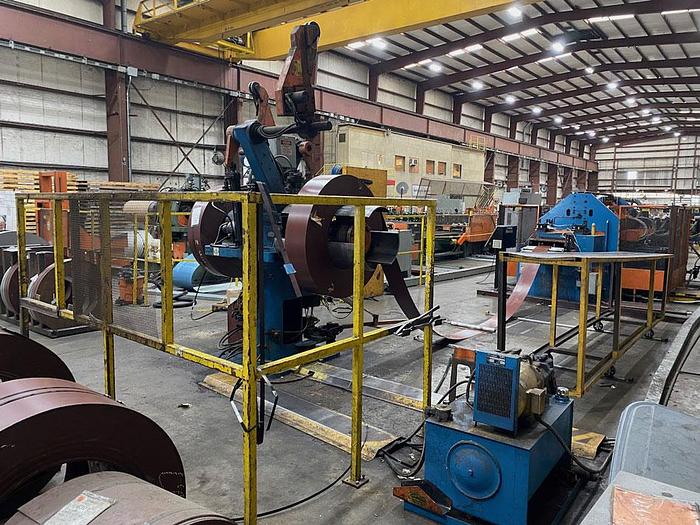

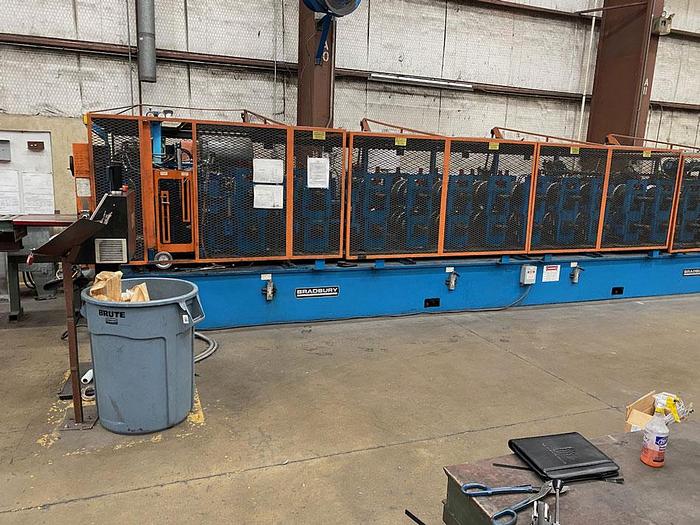

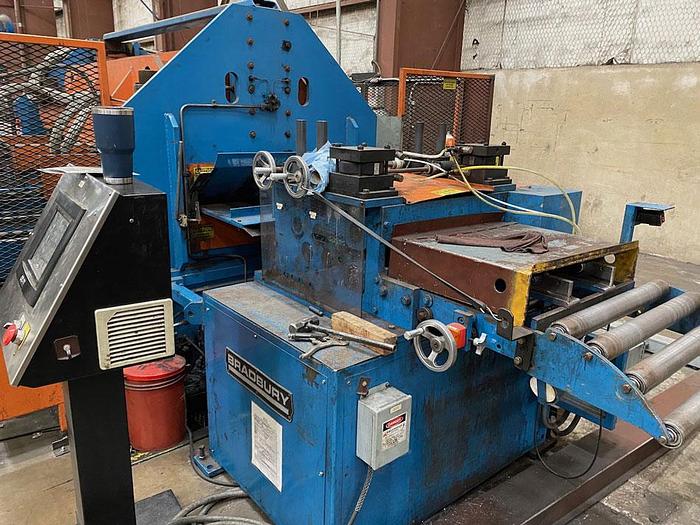

BRADBURY QTR PURLIN ROLL FORMER (USED)

GENERAL SPECIFICATIONS:

MATERIAL: PRE-PAINTED STEEL, GALVANIZED

MATERIAL STRENGTH:

65,000 PSI YIELD MAXIMUM:

50,000 PSI YIELD MINIMUM

THICKNESS:

.105" MAXIMUM, .060" MINIMUM

12 TO 16 GAUGE (APPROXIMATELY)

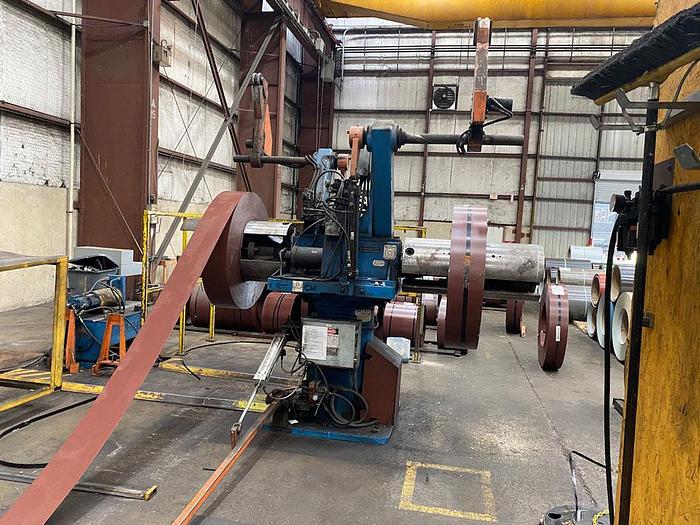

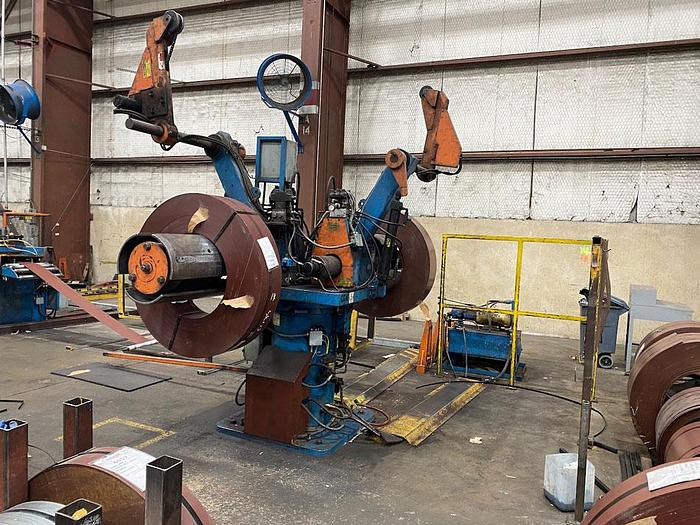

COIL WEIGHT: 10,000 LB. MAXIMUM

COIL WIDTH: 24" MAXIMUM

COIL I.D: 24" MAXIMUM, 20" MINIMUM

COIL O.D: 60" MAXIMUM

LINE DIRECTION: RIGHT TO LEFT

MODE OF OPERATION: PREPUNCH AND PRECUT

ROLLFORMER SPEED: 200 FPM, SINGLE SPEED

CUT LENGTH:

45' MAXIMUM

5' MINIMUM-COMPLETE CUT

6" MINIMUM-PARTIAL CUT WITH LEADER

LENGTH TOLERANCE: +/-1/16" @ MAXIMUM PART LENGTH

POWER REQUIREMENTS:

DRIVE: 460 VOLTS, 60 CYCLES, 3 PHASE

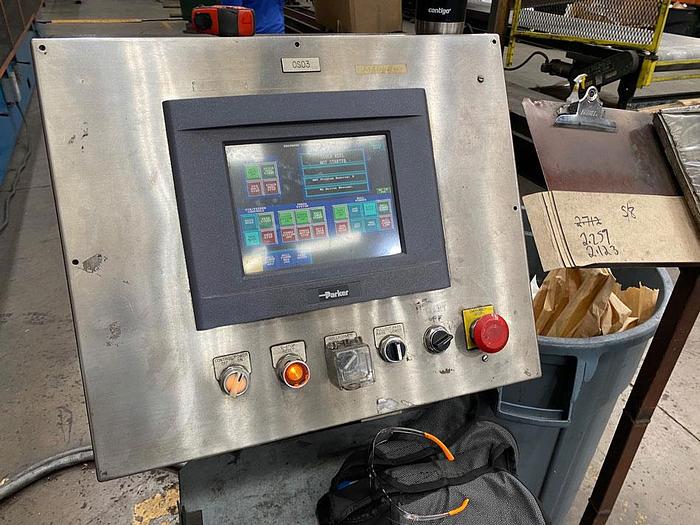

CONTROL: 115 VOLTS,60 CYCLES

AIR: 80 PSI MINIMUM, (CLEAN & DRY, BY CUSTOMER)

HYDRAULICS: 1,500 PSI WORKING PRESSURE
