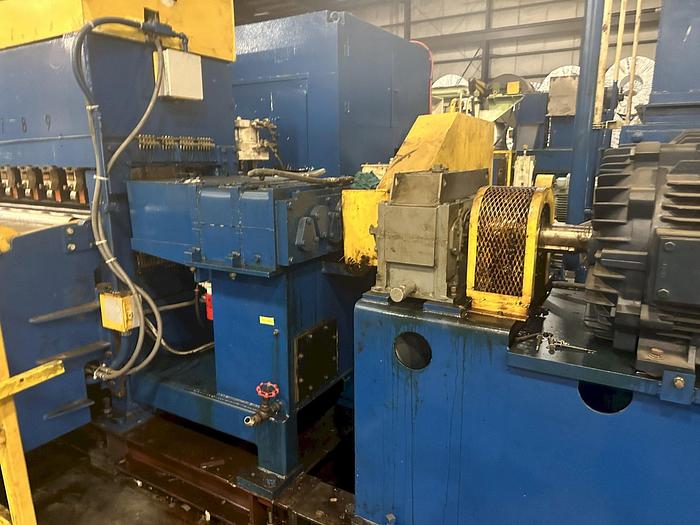

72" X .128" X 70,000 # AUTOMATIC FEED CO. SERVO FEEDLINE WITH HERR-VOSS LEVELER

FEED SYSTEM

PIT COIL CAR: YES

DOUBLE STUB UNCOILER: YES

CAPACITY: 70,000 LBS

HYDRAULIC EXPANSION: YES

EXPANSION RANGE: 20" - 24"

COIL O.D. CAPACITY: 86"

HOLD DOWN ROLL: YES

DRIVE MOTOR: 15 HP DC

SLIDING BASE ON EACH HEAD: YES

PEELER/PINCH ROLL UNIT: YES

CROP SHEAR: YES

HYDRAULIC DOWNCUT TYPE: YES

MASHING UNIT

HERR VOSS 6-HI PRECISION LEVELER

MODEL: VKL 84/1.750-19/9 6-HI, LH

CAPACITY: 72"

THICKNESS: .023" - .128" @ 60,000 PSI YIELD

WORK ROLL SIZE: 84" X 1.75" DIAM.

# OF WORK ROLLS: 19

# OF BACK UP ROLLS: 9 FLIGHTS

MOTOR SIZE: 200 HP

RPM: 1750

WEIGHT: APPROX 26,000 LBS

LOOPING PIT

ROLL FEED UNIT

FEEDING LENGTH: 2" MIN TO 120" MAX

LINE SPEED: APPROX 80 IN/MIN
