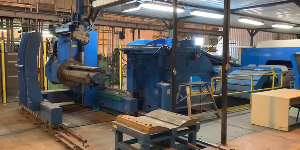

PivaPunch PCC125-e Electrical Punching Centre for Coils

General technical details:

Ambient temperature

 This equipment is designed for the max. ambient temperature of 45 °C.

Main connection details

 Electrical connection,

•   TN-S rated (3 phases and PE, N not required)
•   voltage = 3*400 V
•   fluctuation = +6,-10 %
•   frequency = 60±5 Hz
•   Main fuses = 63 A
•   Pneumatic connection 800 = l/min at 6 bar
•   Hydraulic power (200 bar) = 5.5 kW

Material data

•   Steel strip, strength up to = 400 N/mm2
•   Surface pre-painted, plastic covered, galvanised
•   Coil weight up to = 10 000 kg

 Sheet thickness = 0,5....1.50 mm

•   The diameter of the inside hole of coils = 508 mm
•   The outside diameter of coils up to = 1 600 mm
•   Strip width = 60...1 250 mm

Product data

•   Cut blanks up to = 2 500 mm
•   Punched blanks up to = 2 500 mm
•   Accuracy of parts produced:
• When using proper material without chamber and internal stress and the strip being stiff enough (thickness/width), following tolerances apply:

 PivaPunch incl. one Punching Station

Hole-to-hole tolerance of up to 2 000 mm long punched blanks ± 0,15 mm in X and Y directions.

The tolerances of your parts are confirmed on request.

# These tolerances are valid for blanks up to 2 000 mm long which camber does not exceed 1 mm.
