72" x .135" x 40,000# Herr Voss / Cincinnati Cut-To-Length Line

SPECIFICATIONS

Thickness Range: 24ga to 10Ga

Coil Weight Capacity: 40,000#

Sheet Length: 24” - 20’

Coil OD: 72”

Coil ID: 20” - 24”

Complete Line With:

L-Type Coil Car

Floor Standing / Self Contained Hydraulics

Powered Conveyor Rolls of V-Deck

Mandrel Uncoiler

Sliding Base

4 Leaf Hydraulic Expansion

Powered Hold Down Roll

Disc Brake

Air Clutch & Feed Up Drive

Peeler Table

Edge Guides

Pinch Rolls

Herr Voss 4HI Precision Leveler. (Rebuilt)

Model: LH-84-1.75-19-7

Thickness Range: .028” - .125”

1 3/4” Dia. Work Rolls

84” Roll Face

7 Flights Top & Bottom Back-Ups

5 Flights Motorized with Individual Adjustments

75 HP DC Drive

Herr Voss 4HI Precision Leveler

Model: LH-82-2.187-19-7-4HI

Thickness Range: .036” - .164”

7 Flights Top & Bottom Back-Ups

5 Flights Motorized with Individual Adjustments

Digital Read Out Roll Positioning

125 HP DC Drive

Hump Table

Cincinnati Shear

Twin Belt Gauging Table

Positive Stop

Motorized Length Adjustment

In Line Printer

Cincinnati Stacker (Updated By Delta Brands)

Hydraulic Lift Table

Blower

Side Squaring

End Stop

Motorized Width Adjustment

End Discharge Run Out Conveyor

Two Sets of Leveler Controls

Digital Length Measuring

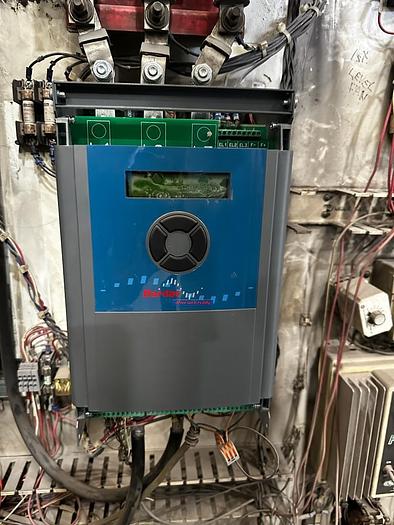

Bardac Digital Drives (Drive Web Ready)

Model PXL115

50/60 HZ

Spare Rolls and Spare Parts

Complete Line Can Be Inspected Under Power and Operating
