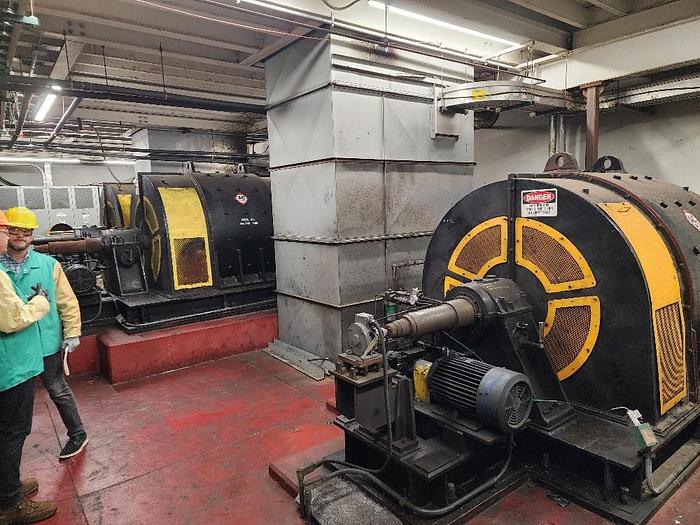

48” 6Hi-4Hi Reversing Mill

Specifications:

Maximum Capacity: 40,000#

Operational Date: April 1994

Entry and Exit Width by Guage and Passes:

• One pass over .150” – 40”

• One pass under .150” – 41”

• Multiple pass – 40”

(All widths do not include mill edge)

• 24” I.D. Only Entry and Exit

• 72” Max Entry and Exit O.D.

• Incoming Thickness: .070” to .290”

• Finish Thickness: .050” to .280”

Performance:

• Line Speed: 1,000 FPM

• AGC Capability: + / - .001

Additional Features:

• Shape Meters on Both Sides

• Strip Profile Capabilities

• X-Ray Gauges

• Capacity: 40,000#

• Production Rate: 120,000#/hr.

• Rewind Capability: Yes
