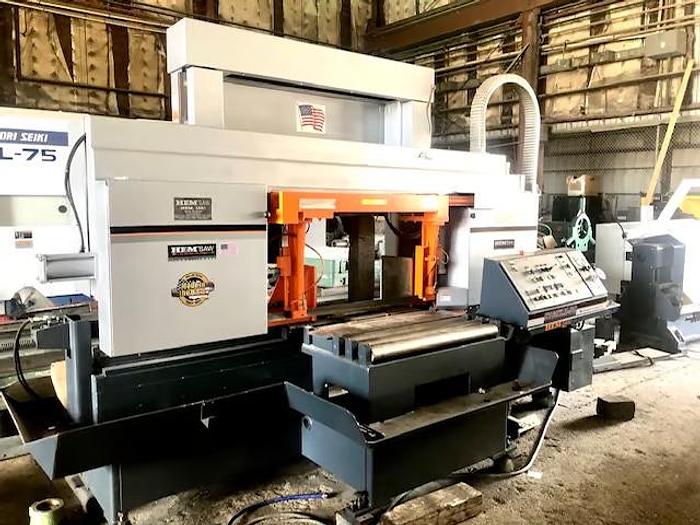

25" x 36" Hem Double Column Horizontal Bandsaw, 28" wheel

HEM MODEL H160XLM-DC DOUBLE COLUMN HORIZONTAL BANDSAW MACHINE.

SERIAL NUMBER: 446695

=====================================================

SPECIFICATIONS:

Max. cutting cap. 90 deg, round 25"

Max. cutting cap. 90 deg, rectangle 25" x 36"

Blade dimensions 2" x 23' x 063"

Blade guides Carbide

Guide arm (manual / powered)

Powered Blade speeds 70-500 FPM

Number of speeds Infinitely variable

Blade motor 15 HP

Blade drive type pulley to gearbox

Blade tension-type Powered

Blade wheel size 28"

Hydraulic motor 5 HP

Coolant motor 1/2 HP

Coolant type Flood

Table height 35"

Discharge Table Size 24"

Vise type Hydraulic

Voltage 220/440

Currently Wired 440 Volt

Dimensions: 172" x 85" x 109"

Equipped With:

Powered blade brush

Blade speed digital readout

Head feed digital readout

Variable feed rate & cutting pressure

Variable vise pressure
