72" x 10.00" x 60,000 Lb Paxson Slitting Line

Specifications

Paxson Slitting Line

Coil Width: 72"

Coil Weight: 60,000 lbs.

Coil I.D. Range: 20" - 24"

Gauge Range: 0.045" to 0.375" Thickness

Line Direction: Right to Left

Consisting of the Following:

-Entry "L Type Coil Car:

Self Contained Hydraulics

Hydraulic Lift and Travel

Self Contained Hydraulic Unit

-Mandrel Type Payoff:

Hydraulic Expansion

Pumpkin Tooth Mandrel

Slide Base

Water Cooled Air Brake

Hydraulic Motor Feedup

-Entry Unit:

Powered Overarm Holddown

Peeler Table

-Powered Pinch Rolls:

Breaker Rolls Powered

Entry Passline Roll

-Hydraulic Crop Shear:

Entry Side Guides

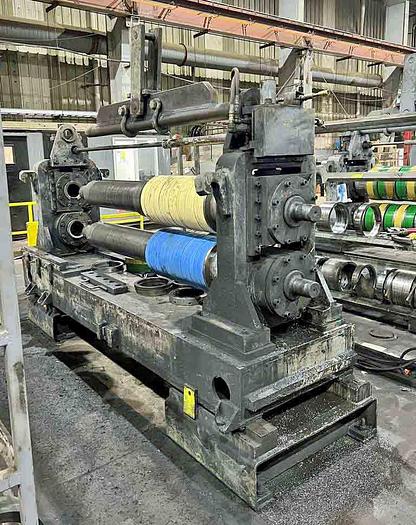

-(2) Slitter Heads:

72" x 10" Dia. Arbors

52" x 10" Dia. Arbors

Crane Lift Off Type

Entry Powered Pinch Rolls

Entry Side Guides

-Exit Threading Table:

Hydraulic Lift and Extend

Pass Line Roll

-Paxson Recoiler:

20" Dia. Drum

Hydraulic Clamp and Expansion

Hydraulic Pushoff

(2) DC Drive Motors

2 Speed Gearbox

-Free Standing Overarm Separator:

-Dual Scrap Winders:

Hydraulic Wind

Level Wind

-2 Arm Exit Turnstile:

-Installed and running
